HF321N

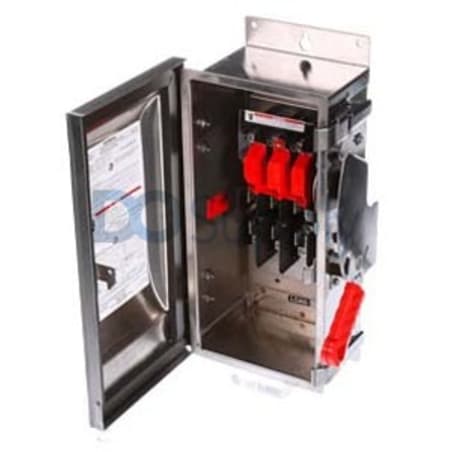

The Siemens HF321N heavy-duty safety switch is engineered for high performance in demanding applications. With a rated voltage of 240 VAC and a current capacity of 30 A, this unit efficiently handles 3-phase wiring configurations.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HF321N
| Manufacturer | Siemens |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | VBII Safety Switches |
| Part Number | HF321N |
| UPC | 783643150287 |
| Rated Voltage | 240 VAC |
| Number of Poles | 3 Poles |
| Number of Wires | 3 Wires |
| Phase Type | 3 Phase |
| Terminal Type | Lug |
| Mounting Type | Surface Mount |
| Housing Material | Steel |
| Rated Current | 30 A |
| Enclosure Type | NEMA 1 |
| Operating Humidity | 80% (non-Condensing) |
| Installation Altitude | 1000 MSL |
Siemens’ HF321N is categorized as a heavy-duty safety switch, specifically designed for reliable operation in industrial settings. Operating at a voltage of 240 VAC, this switch is rated for a maximum current of 30 Amperes. It accommodates three poles and three wires, tailored for 3-phase service, effectively supporting complex electrical systems.
This safety switch is equipped with lug-type terminals designed for secure electrical connections. For installation, it employs a surface mount method, ensuring straightforward integration within existing setups. Constructed from steel, the robust housing provides durability, while the NEMA 1 enclosure type offers basic protection suited for indoor environments.
Additionally, the HF321N can operate in humidity levels of up to 80%, non-condensing, which is beneficial for environments subject to moisture. It is recommended for installations up to 1000 meters above sea level, enhancing its versatility. Overall, the HF321N heavy-duty safety switch is a practical solution for users requiring dependable performance in rigorous applications.
