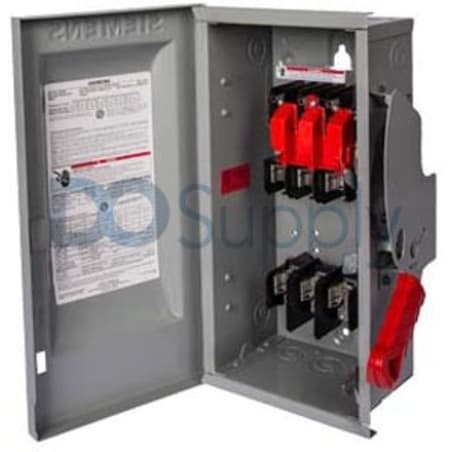

Product image is representative; revision or series may vary. Contact us to request a specific version.
HF322NR
The Siemens HF322NR is a heavy-duty safety switch designed for robust electrical applications. This model operates efficiently with a rated voltage of 240 VAC and features a three-phase configuration.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HF322NR
| Manufacturer | Siemens |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | VBII Safety Switches |
| Part Number | HF322NR |
| UPC | 783643150690 |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Mounting Type | Surface Mount |
| Number of Wires | 3 Wires |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Terminal Type | Lug |
| Rated Voltage | 240 VAC |
| Insulation Type | Non-Insulated |
| Short Circuit Current Rating | 200 kA |
In the Siemens VBII Safety Switches series, the HF322NR stands out as a heavy-duty safety switch suitable for demanding environments. Designed to handle a rated voltage of 240 VAC, this switch operates within a three-phase setup and contains three poles.
Supporting both 50 Hz and 60 Hz frequencies, it is adaptable for varying electrical systems. The connection terminals are lug types, which allow for straightforward installation in situations where space and safety are priorities. The insulation is non-insulated, making it suitable for applications where insulation is not necessary. The HF322NR also boasts a significant short circuit current rating of 200 kA, ensuring reliable performance and safety during electrical faults.
