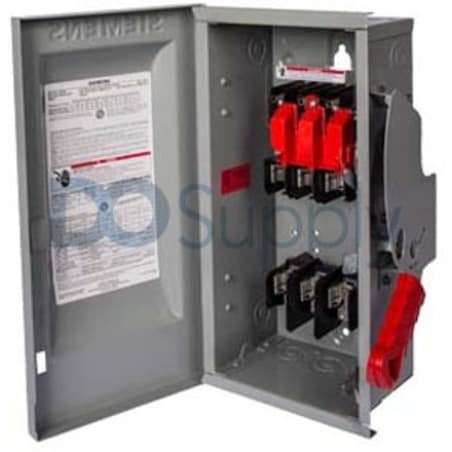

HF362NR
The HF362NR is a heavy-duty safety switch from Siemens designed for reliable operation in industrial environments. It is rated for 60 A and compatible with both 50 Hz and 60 Hz frequencies, featuring a robust construction made from steel.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HF362NR
| Manufacturer | Siemens |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | VBII Safety Switches |
| Part Number | HF362NR |
| UPC | 783643151673 |
| Rated Current | 60 A |
| Enclosure Type | NEMA 3R |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Housing Material | Steel |
| Number of Poles | 3 Poles |
| Phase Type | 3 Phase |
| Number of Wires | 4 Wires |
| Terminal Type | Lug |
| Mounting Type | Surface Mount |
| Rated Voltage | 600 VAC |
Siemens presents the HF362NR, a heavy-duty safety switch engineered for demanding electrical environments. Designed for three-phase systems, it supports a rated current of 60 A. The unit operates effectively at frequencies ranging from 50 Hz to 60 Hz.
Constructed from durable steel, the switch's NEMA 3R enclosure provides protection against the elements, making it suitable for both indoor and outdoor use. It features three poles and four wires, coupled with lug-type terminals for secure electrical connections. This heavy-duty safety switch operates at a maximum voltage of 600 VAC, ensuring it can handle significant loads effortlessly. The surface mount design allows for straightforward installation, further enhancing its utility in industrial settings.
