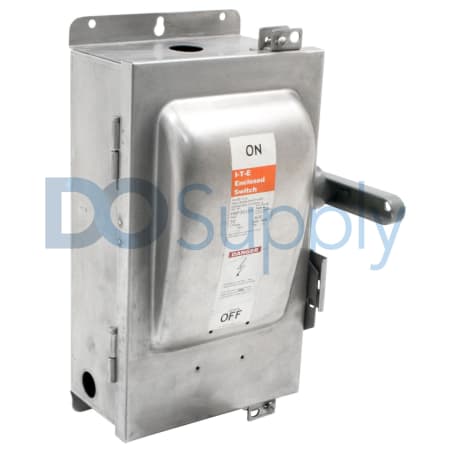

HF363S
The HF363S is a heavy-duty safety switch manufactured by Siemens. Designed for robust applications, this switch supports three poles and operates at an amperage rating of 100 A, making it suitable for various power systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HF363S
| Manufacturer | Siemens |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | VBII Safety Switches |
| Part Number | HF363S |
| UPC | 783643151994 |
| Poles | 3 Poles |
| Amperage Rating | 100 Amperes |
| Voltage Rating | 600 Volts AC, 250 Volts DC |
| Enclosure Rating | NEMA 4X |
| Material Type | 304 Stainless Steel |
| Frequency | 50/60 Hertz |
| Connection Type | Bolt On |
| Terminal Type | Front Terminals and Load Side Load Bar |
| Phase | 3 Phase |
| Wire Range | AWG 10-2/0 Cu/Al |
| Certification | UL, CSA |
Siemens’ HF363S, part of the VBII Safety Switches series, is a solid heavy-duty safety switch. It features three poles and is rated for a maximum amperage of 100 Amperes, suitable for high-demand environments. This unit can handle voltages up to 600 Volts AC and 250 Volts DC, thus providing flexibility for various circuit configurations.
Constructed from durable 304 stainless steel, the HF363S ensures longevity and depends on a NEMA 4X rated enclosure for protection against dust and moisture. Operating within standard frequencies of 50 or 60 Hertz, it is designed for dependable performance even in challenging environments. The switch employs bolt-on connections for secure installation, featuring front terminals and a load bar on the load side for easy management of connections.
With a three-phase configuration, this safety switch supports a wire range of AWG 10 to 2/0 for both copper and aluminum conductors. It meets essential safety certifications from UL and CSA, highlighting its adherence to rigorous safety standards, making it an ideal choice for various industrial applications.
