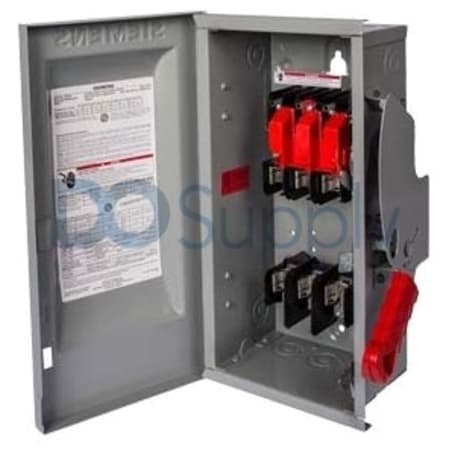

HNF364R
The HNF364R, a heavy-duty safety switch by Siemens, is built for robustness in demanding environments. With an impressive amperage rating of 200 Amperes, it operates across a voltage range of 600 Volts AC and 250 Volts DC, making it versatile for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HNF364R
| Manufacturer | Siemens |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | VBII Safety Switches |
| Part Number | HNF364R |
| UPC | 783643151765 |
| Amperage Rating | 200 Amperes |
| Voltage Rating | 600 Volts AC, 250 Volts DC |
| Poles | 3 Poles |
| Handle Mechanism | External Rotary Operating Handle |
| Fusibility | Non Fusible |
| Enclosure | NEMA 3R (Outdoor) |
| Phase | 3 Phase |
| Power Ratings | 60/125/150/40 HP at 240/480 Volts AC, 600/250 Volts DC |
| Certification | UL, CSA |
| Hubs | Bolt-On Hub |
| Operating Temperature | -29 to 60 Degrees Celsius |
| Frequency | 60 Hertz |
Siemens' HNF364R belongs to the VBII Safety Switches series, designed to provide reliable power control in heavy-duty applications. The switch is rated for a maximum input of 200 Amperes and accommodates operational voltages up to 600 Volts AC and 250 Volts DC. This product is constructed for three-phase power systems and comes with an external rotary operating handle, allowing for straightforward manual control.
The HNF364R's fusibility is classified as non-fusible, minimizing the need for replacements during operation. Its enclosure is rated NEMA 3R, making it suitable for outdoor installations due to its ability to withstand various environmental conditions. It has a wide operating temperature range of -29 to 60 degrees Celsius, ensuring performance across different climatic scenarios.
This safety switch can accommodate power ratings of 60, 125, 150, and 40 horsepower at 240 and 480 Volts AC, as well as at 600 and 250 Volts DC. Certification by UL and CSA underscores its compliance with safety standards. The HNF364R features bolt-on hubs for secure wiring connections and operates at a frequency of 60 Hertz, making it ideal for numerous commercial and industrial applications.
