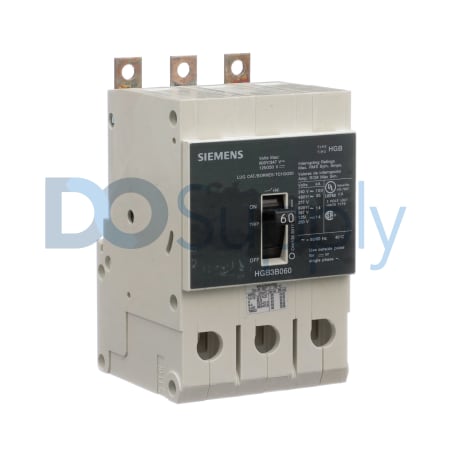

Siemens VL Series HGB3B060B

Product image is representative; revision or series may vary. Contact us to request a specific version.

HGB3B060B

|
Need a Specific Revision?

The HGB3B060B from Siemens is a molded case circuit breaker designed for dependable electrical distribution. With a current rating of 60 amps, this UL listed unit features three poles and a maximum voltage rating of 600 V, ensuring its suitability for diverse applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for HGB3B060B

ManufacturerSiemens
Product TypeMolded case circuit breaker
Product LineVL Series
Part NumberHGB3B060B
UPC887621219840
Current Rating60 A
Number of Poles3 poles
CertificationUL listed
Wire Range8–1/0 AWG
Terminal TypeLugs
Voltage Rating600 V
Phase Type3-phase
Mounting TypeBolt-on
Connection SideLoad side
System Voltage480Y/277 V
Trip TypeThermal magnetic
Trip FunctionsLong-time, instantaneous
Request a Repair

The Siemens HGB3B060B molded case circuit breaker is engineered for robust performance in electrical management systems. This device can handle a current rating of 60 amps and incorporates three poles, making it suitable for three-phase applications. It is UL certified, indicating compliance with safety standards.

Operating at a voltage level of 600 V, this circuit breaker is capable of supporting a system voltage of 480Y/277 V, providing reliable operation in various settings. It features a wire range from 8 AWG to 1/0 AWG and includes lugs as the terminal type, facilitating secure connections.

For mounting, the unit employs a bolt-on design, ensuring stability in its installation. The trip type is thermal magnetic, allowing the breaker to manage long-time delays and instantaneous trips, which are essential for safeguarding against overloads and short circuits. This combination of features makes the HGB3B060B a vital component in efficient electrical distribution systems.
