Siemens VL Series HGB3B100B

Product image is representative; revision or series may vary. Contact us to request a specific version.

HGB3B100B

|
Need a Specific Revision?

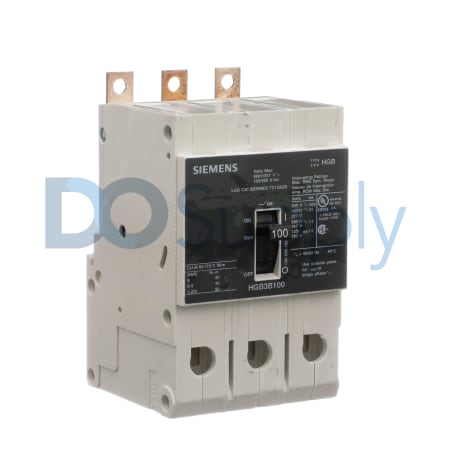

The Siemens HGB3B100B, part of the VL Series, is a molded case circuit breaker engineered for panel board mounting. This unit boasts a current rating of 100 Amps and supports a rated voltage range of 480/600 Volts AC.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for HGB3B100B

ManufacturerSiemens
Product TypeMolded Case Circuit Breaker
Product LineVL Series
Part NumberHGB3B100B
UPC887621219888
Mounting TypePanel Board Mount
Terminal ConnectionLoad Side Lugs
Frame TypeHGB Series
Type of Trip UnitThermal Magnetic
Interrupt Rating35 kiloamperes at 480 Volts AC and 100 kiloamperes at 240 Volts AC
Rated Voltage480/600 Volts AC
Number of Poles3 Poles
Protective FunctionsLong-Time and Instantaneous (LI)
Wire Size14 to 1/0 American Wire Gauge (AWG)
Rated Phase3-Phase
Type of ConnectionBolt-On
Current Rating100 Amperes
Request a Repair

The HGB3B100B circuit breaker comes from Siemens and falls under the VL Series category. Designed to mount directly on a panel board, this molded case circuit breaker features a load side lug connection type, ensuring secure wiring for effective electrical delivery. It operates optimally with a three-phase setup and can handle a voltage rating of 480 to 600 Volts AC, making it versatile for various applications.

A key characteristic of this device is its current rating of 100 Amperes. It is fabricated within the HGB Frame Type, supporting robust construction to withstand operational demands. The trip unit is thermal magnetic, providing effective responses in both long-time and instantaneous scenarios. This capability makes it a reliable choice for and critical applications that require quick action in overload or fault conditions.

With an interrupt rating of 35 kiloamperes at 480 Volts AC and a notable 100 kiloamperes at 240 Volts AC, the HGB3B100B ensures safety by managing electrical faults effectively. Furthermore, it accepts a range of wire sizes from 14 to 1/0 American Wire Gauge (AWG), accommodating various installation requirements. Overall, this circuit breaker is built for dependability and safety in demanding electrical setups.
