LGB3B025B

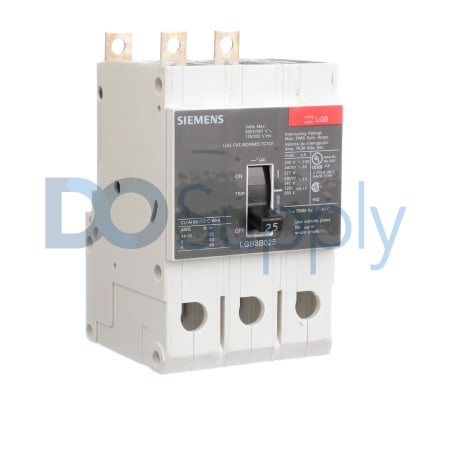

The Siemens LGB3B025B molded case circuit breaker is engineered to provide dependable protection for electrical branching circuits. Designed to operate under a rated current of 25 amperes, it supports a voltage rating of 600 VAC, making it suitable for a wide range of applications. This breaker features a three-pole design, ensuring compatibility for three-phase systems.

For its construction, the breaker incorporates bolt-on lugs for secure terminal connections, facilitating ease of installation. It also includes an insulation voltage rating of 600 volts, ensuring effective performance in demanding environments. With an impressive interrupting rating of 100 kA at 240 volts, the LGB3B025B provides robust safeguard against potential fault conditions.

The operating frequency for this unit is compatible with standards of both 50 and 60 Hz, enhancing its versatility across different electrical systems. The protection scheme of this breaker is classified as thermal magnetic, allowing for advanced overload and short-circuit protection. It features trip functions that can be adjusted for long-time and instantaneous trips, catering to varying operational requirements. Finally, this circuit breaker is designed for panel mounting, ensuring that it can be integrated easily within control panels or distribution boards, optimizing space and accessibility.
