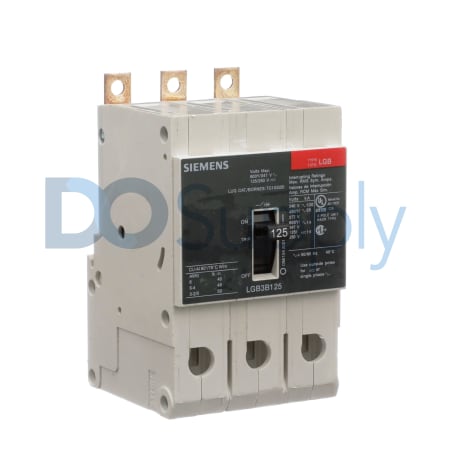

Product image is representative; revision or series may vary. Contact us to request a specific version.
LGB3B090B
The LGB3B090B circuit breaker from Siemens' VL Series is specifically designed to deliver reliable protection for electrical systems. With a current rating of 90 Amps and a maximum voltage rating of 600 VAC, this circuit breaker is adept at managing electrical loads efficiently.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for LGB3B090B
| Manufacturer | Siemens |
|---|---|
| Product Type | Circuit breaker |
| Product Line | VL Series |
| Part Number | LGB3B090B |
| UPC | 887621220327 |
| Poles | 3 poles |
| Current Rating | 90 Amps |
| Voltage Rating | 600 VAC |
| Mounting | Bolt-on |
| Phase | 3 phase |
| HACR Type | Yes |
| Interrupting Rating @ 240V | 100 kAIC |
| Interrupting Rating @ 480Y/277V | 65 kAIC |
| Interrupting Rating @ 600Y/347V | 14 kAIC |
| Ambient Operating Temperature | 0 to 40 degrees Celsius |
The Siemens LGB3B090B belongs to the VL Series and serves as a robust circuit breaker for industrial settings. Designed with three poles, this component is capable of handling three-phase electrical systems effectively. It provides a current capacity of 90 Amps, suitable for various applications requiring reliable protection. This circuit breaker operates at a voltage rating of 600 VAC, ensuring it can manage significant electrical loads. It features a bolt-on mounting type, facilitating straightforward installation. The device’s performance during fault conditions is impressive, with interrupting ratings of 100 kAIC at 240 volts, 65 kAIC at 480Y/277 volts, and 14 kAIC at 600Y/347 volts, indicating its capability to handle substantial surges. Additionally, this breaker is classified as HACR type, making it suitable for use in heating, air conditioning, and refrigeration applications. It operates within a temperature range of 0 to 40 degrees Celsius, allowing for operational consistency in standard industrial environments. The LGB3B090B circuit breaker is UPC certified and exemplifies high-grade engineering for reliable electrical protection.
