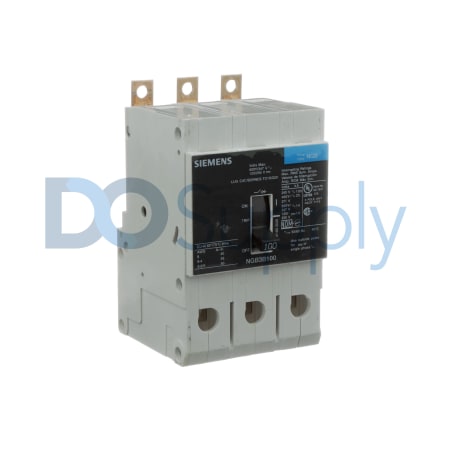

Siemens VL Series NGB3B100B

Product image is representative; revision or series may vary. Contact us to request a specific version.

NGB3B100B

|
Need a Specific Revision?

The NGB3B100B from Siemens is a circuit breaker part of the VL Series, designed to handle significant electrical loads. With a current rating of 100 Amps, this device operates at 600Y/347V AC, ensuring stability and performance over a range of applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for NGB3B100B

ManufacturerSiemens
Product TypeCircuit Breaker
Product LineVL Series
Part NumberNGB3B100B
UPC783643414372
Poles3 Poles
Current Rating100 Amps
Voltage Rating600Y/347V AC
Interrupting Rating @ 480V25 kAIC
Interrupting Rating @ 600V14 kAIC
CertificationUL
Load Lugs IncludedYes
Max. Installation Altitude1000 meters above sea level
Operating Temperature Range0 to 40 degrees Celsius
Storage Temperature Range0 to 50 degrees Celsius
Request a Repair

The Siemens NGB3B100B is categorized as a circuit breaker and is part of the VL Series. This unit is engineered to accommodate up to 100 Amps of current and is rated for 600Y/347V AC applications. The usage of three poles enables it to manage substantial electrical loads efficiently.

In terms of safety, this circuit breaker has notable interrupting ratings: it can clear currents of 25 kAIC at 480 Volts and 14 kAIC at 600 Volts. Certified by UL, it meets necessary performance standards for reliability. The unit comes equipped with load lugs which facilitate connections and enhance installation ease.

This breaker can be installed at altitudes not exceeding 1000 meters above sea level and operates optimally within a temperature range of 0 to 40 degrees Celsius. For storage, it can be maintained at a temperature of 0 to 50 degrees Celsius. The design and features of the NGB3B100B make it suitable for various electrical systems needing dependable short circuit protection.
