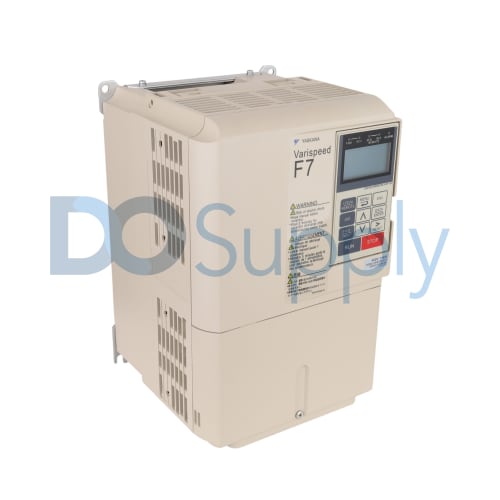

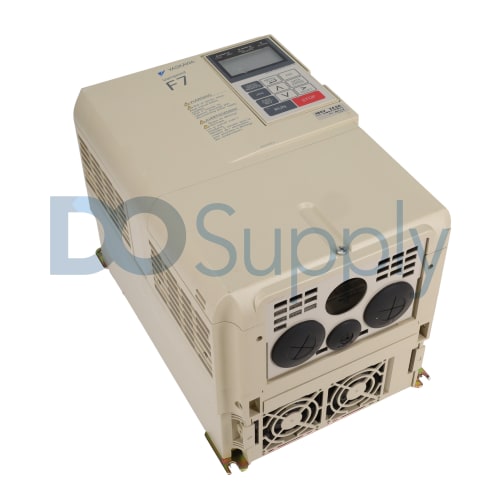

Yaskawa F7 Series CIMR-F7U4011

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-F7U4011

|
Need a Specific Revision?

The Yaskawa CIMR-F7U4011 is a versatile variable speed drive designed for precise motor control. It operates within a voltage range of 380 to 480 VAC and supports both 50 and 60 Hz frequencies, making it suitable for various industrial applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-F7U4011

ManufacturerYaskawa
Product LineF7 Series
Part NumberCIMR-F7U4011
Weight14.00 lbs (6.35 kg)
SeriesAC Drives
NameVariable Speed Drive
Input Voltage Range380 to 480 VAC
Input Frequency Range50/60 Hz
High Demand Input Current29 A
Normal Demand Input Current33 A
Number of Phases3-phase
Output Voltage0 to 480 VAC
Output Frequency0 to 400 Hz
High Demand Output Current24 A
Normal Demand Output Current27 A
Apparent Power18/21 kVA
Request a Repair

The Yaskawa CIMR-F7U4011 serves as an adjustable variable speed drive, adept at efficiently regulating motor operation. Tailored to accommodate input voltages between 380 to 480 VAC, this drive functions optimally within a frequency spectrum of either 50 or 60 Hz. Built for 3-phase power systems, users can expect a normal input current of 33 A, while high demand scenarios necessitate a maximum of 29 A.

This unit delivers output voltages ranging from 0 to 480 VAC and has the capability to manage frequencies from 0 up to 400 Hz. Depending on the demand, it effectively supplies an output current of 27 A under regular conditions and up to 24 A during heightened operations. The apparent power rating reaches either 18 or 21 kVA, affirming its capacity to handle significant loads.

Weighing in at 6 kg or approximately 13.23 lbs, the CIMR-F7U4011 is designed to fit seamlessly into various settings, ensuring ease of installation and operation. This variable speed drive is ideal for applications that require precise control over motor speed and performance, making it a crucial component in modern automation systems.
