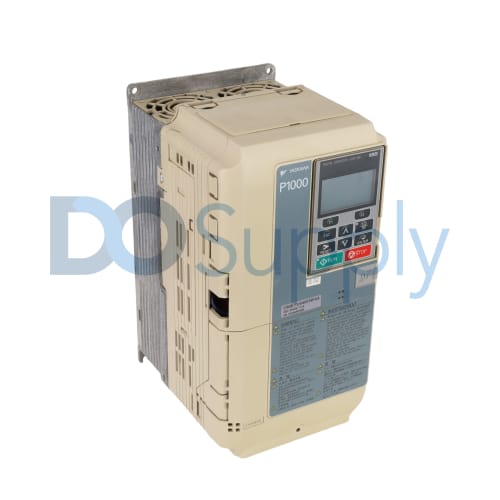

Yaskawa GPD CIMR-PU4A0018FAA

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-PU4A0018FAA

|
Need a Specific Revision?

The Yaskawa CIMR-PU4A0018FAA is a variable speed drive designed for precise control in various applications. It operates with a voltage rating of 480 V and holds a horsepower capacity of 10 hp, making it suitable for mid-range motor operations.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-PU4A0018FAA

ManufacturerYaskawa
Product LineGPD
Part NumberCIMR-PU4A0018FAA
Weight13.00 lbs (5.90 kg)
ProductVariable Speed Drive
Voltage Rating480 V
Horsepower Rating10 hp
Current Rating17.5 A
Enclosure RatingNEMA 1
Number of Poles6
Maximum Operating Temperature60 degrees Celsius
Minimum Operating Temperature0 degrees Celsius
Maximum Operating Humidity80% RH (non-condensing)
Maximum Storage Humidity80% RH (non-condensing)
Maximum Operating Altitude1000 meters above sea level
Protection ClassIP20
Request a Repair

The CIMR-PU4A0018FAA from Yaskawa is a variable speed drive tailored to ensure reliable performance in diverse applications. It is rated for a voltage of 480 volts and can deliver up to 10 horsepower. The current rating stands at 17.5 amps, providing sufficient power for various operating conditions. Designed with a NEMA 1 enclosure, the drive is suitable for indoor use.

It is engineered to function efficiently within an operating temperature range spanning from 0 degrees Celsius to a maximum of 60 degrees Celsius. This allows flexibility in installation settings. The drive supports humidity levels of up to 80% relative humidity, with the condition that this humidity does not condense. This feature adds to its viability for environments that might experience moisture.

The unit accommodates a maximum operating altitude of up to 1000 meters above sea level, making it useful for applications in higher elevations. With a protection class of IP20, it is safeguarded against dust and solid objects greater than 12 mm in diameter. This combination of features helps ensure the durability and reliability of the Yaskawa CIMR-PU4A0018FAA variable speed drive when deployed in various industrial applications.
