GPD506V-B011

Need a Specific Revision?

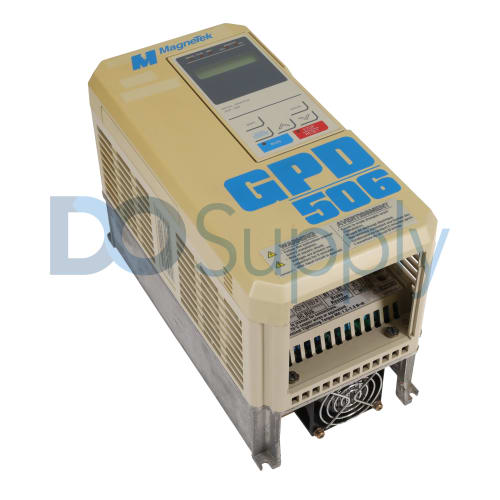

The Yaskawa GPD506V-B011 is an AC drive capable of delivering 7.5 horsepower. It is designed to operate with 460 VAC input voltage and can handle an input frequency of both 50 and 60 Hz.

Ships Tomorrow, May 23.

2 Year DO Supply Warranty

In Stock

Ships from Raleigh, NC

Learn more

Warranty

We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Shipping

Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
Payment Methods

AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
Repairs & Exchanges

Repair and exchange services for all existing automation products.
Reseller Options

Drop shipping, blind shipping, and account shipping with no extra fees.

Technical specifications for GPD506V-B011

Manufacturer	Yaskawa
Series	GPD
Part Number	GPD506V-B011
Product Type	AC Drive
Nominal Horsepower	7.5 HP
Input Voltage	460 VAC
Input Frequency	50/60 Hz
Input Phase	3 Phase
Current Rating	11 Amps
Output Voltage	0-460 VAC
Output Frequency	0-400 Hz
Temperature Range	32-104°F (0-40°C)
Weight	8.00 lbs

Request a Repair

The Yaskawa GPD506V-B011 AC drive is built for efficient power management, providing a nominal horsepower rating of 7.5 HP. Operating at an input voltage of 460 VAC, this drive is compatible with both 50 Hz and 60 Hz input frequencies, allowing it to adapt to various power supply scenarios. Designed for 3-phase systems, the drive's current rating is set at 11 Amps, ensuring it can manage significant power demands confidently.

The output voltage of the GPD506V-B011 spans from 0 up to 460 VAC, with a flexible output frequency range extending from 0 to 400 Hz. This wide range enhances the drive's versatility in controlling motor speeds for different applications. In terms of environmental suitability, the drive operates efficiently within temperatures from 32°F to 104°F (0°C to 40°C), making it suitable for typical industrial settings.

Weighing 8.00 lbs, the GPD506V-B011 compact design allows for straightforward installation in various spaces. Overall, the Yaskawa GPD506V-B011 serves as a reliable solution for AC drive applications that require robust performance and flexibility.
