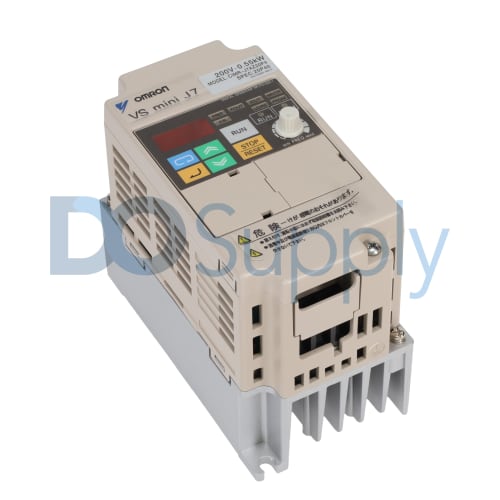

Yaskawa J7 Series CIMR-J7AZ20P4

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-J7AZ20P4

|
Need a Specific Revision?

The CIMR-J7AZ20P4 by Yaskawa is a robust digital inverter designed for 3-phase operation. With a rated output of 0.55 kilowatts and a supply voltage of 200 volts AC, it efficiently manages power with flexibility in control.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-J7AZ20P4

ManufacturerYaskawa
Product LineJ7 Series
Part NumberCIMR-J7AZ20P4
Weight1.75 lbs (0.79 kg)
Inverter TypeDigital operator with potentiometer
Rated Phase3-phase
Supply Voltage Class200 Volts AC
Rated Output0.55 kilowatts
Ambient Operating Temperature-10 to 50°C (in a non-condensing environment)
Terminal Screw SizeM3.5
Screw Tightening Torque0.8 to 1 Newton-meter
Compatible WireAWG 18 to AWG 14
Compatible Wire MaterialVinyl-sheathed wire or equivalent
Status Indicator TypeLED indicators
Power Capacity1.1 kilo-volt amperes
Output Current Rating3 Amperes
Maximum Output Frequency400 Hertz (adjustable)
Control MethodSine Wave Pulse Width Modulation (PWM) control
Overload Capacity150% in 1 minute
Request a Repair

Yaskawa's CIMR-J7AZ20P4 is a digital operator inverter specifically designed for three-phase applications. It operates with a rated output of 0.55 kilowatts, making it suitable for various motor control needs. This model requires a supply voltage of 200 volts AC and features an output current rated at 3 Amperes. It is capable of achieving a maximum output frequency of 400 Hertz, which is adjustable to meet specific application requirements.

Designed for use in environments with temperatures ranging from -10 to 50°C, the inverter is intended for installation in non-condensing conditions to ensure optimal performance. It accepts terminal screws of M3.5 size, with a tightening torque of 0.8 to 1 Newton-meter necessary for secure connections.

For cabling, it is compatible with wire sizes ranging between AWG 18 and AWG 14 and designed for use with vinyl-sheathed wire or equivalent materials. The module includes LED indicators to display the status of the inverter, providing users with immediate feedback on operational status. Additionally, with a power capacity of 1.1 kilo-volt amperes, it assures efficient performance.

The control methodology employed in this inverter is based on sine wave pulse width modulation (PWM), ensuring smooth operation and improved performance. As an added feature, the CIMR-J7AZ20P4 supports an overload capacity of 150% for one minute, allowing it to handle temporary surges in demand. This makes it a versatile choice for diverse industrial applications.
