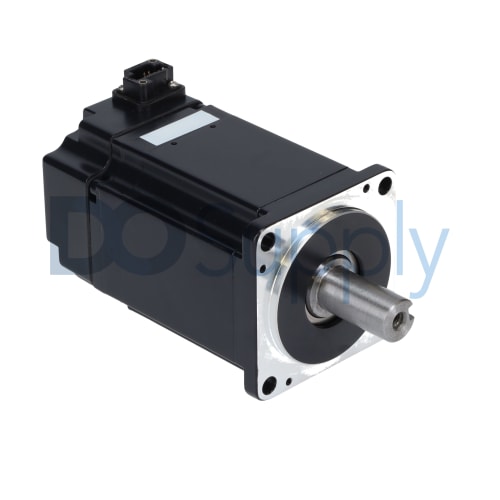

Product image is representative; revision or series may vary. Contact us to request a specific version.
SGMJV-04AAA61
The Yaskawa SGMJV-04AAA61 servo motor offers 200 VAC operation. It is classified as a brushless rotary motor designed for medium inertia applications, with a rated output of 400 watts.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGMJV-04AAA61
| Manufacturer | Yaskawa |
|---|---|
| Product Line | SG Series |
| Part Number | SGMJV-04AAA61 |
| Weight | 5.00 lbs (2.27 kg) |
| Product Name | Servo Motor |
| Voltage | 200 VAC |
| Encoder | 13-bit incremental |
| Shaft End | Straight with key and tap |
| Oil Seal | No |
| Brake | No |
| Servo Motor Type | Brushless Rotary |
| Classification | Medium Inertia, Small Capacity |
| Rated Output | 400 Watts |
| Rated Torque | 1.27 Nm |
| Peak Torque | 4.46 Nm |
| Rated Speed | 3000 RPM |
| Max. Speed | 6000 RPM |
| Rotary Inertia (absolute encoder with battery) | 0.442 x10E-4 kg-m² |
| Rotary Inertia (battery-less absolute encoder) | 0.506 x10E-4 kg-m² |
The Yaskawa SGMJV-04AAA61 servo motor is optimized for performance in various applications. Operating at a voltage of 200 VAC, it falls under the SG Series, characterized by its medium inertia and small capacity classification. Designed as a brushless rotary motor, it provides reliable operation without the need for oil seals or braking mechanisms.
The motor boasts a rated output of 400 watts and generates a rated torque of 1.27 Nm. For enhanced performance, it can deliver peak torque levels of 4.46 Nm, making it suitable for demanding tasks. This unit utilizes a 13-bit incremental encoder for accurate position feedback. The straight shaft end design includes a key and tap feature that simplifies installation.
In terms of speed, the SGMJV-04AAA61 achieves a rated operational speed of 3000 RPM, with the ability to reach a maximum speed of 6000 RPM. The rotary inertia with a battery-equipped absolute encoder is measured at 0.442 x10E-4 kg-m², whereas the inertia without the battery stands at 0.506 x10E-4 kg-m². This variability in inertia helps adapt to different operational conditions, enhancing versatility in various applications.
