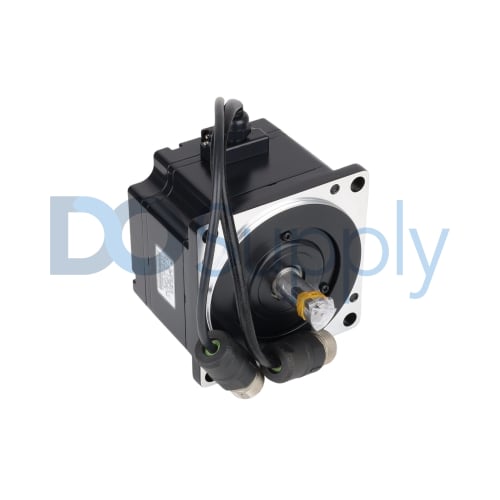

Yaskawa SG Series SGMPH-08AAE41D

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGMPH-08AAE41D

|
Need a Specific Revision?

The Yaskawa SGMPH-08AAE41D AC servo motor is designed for precision performance. With a rated power of 0.75 kW and an operating voltage of 230 V AC, this motor operates efficiently. It achieves speeds of up to 3000 RPM and provides impressive torque ratings of 2.39 Nm.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGMPH-08AAE41D

ManufacturerYaskawa
Product LineSG Series
Part NumberSGMPH-08AAE41D
Weight10.69 lbs (4.85 kg)
ProductAC Servo Motor
Power Rating0.75 kW
Voltage Rating230 V
Voltage TypeAC
Shaft EndStraight with Key
BrakeNo
Speed3000 RPM
Torque Rating2.39 Nm
Current Rating4.1 A
Maximum Ambient Temperature60 degrees Celsius
Minimum Ambient Temperature0 degrees Celsius
Maximum Humidity for Operation80% RH (non-condensing)
Maximum Humidity for Storage80% RH (non-condensing)
Maximum Operating Altitude1000 meters above sea level
Request a Repair

The Yaskawa SG Series part number SGMPH-08AAE41D is an AC servo motor known for its compact size and efficient operation. It is capable of delivering a power output of 0.75 kW while operating at a voltage of 230 Volts AC. The motor can reach speeds of 3000 RPM, alongside a torque rating of 2.39 Nm, supporting precise control for a range of automated applications.

Designed for reliable performance, it boasts a current rating of 4.1 A. The environmental conditions under which this motor operates are quite flexible, being effective within an ambient temperature range from 0 degrees Celsius to a maximum of 60 degrees Celsius. Furthermore, it supports high humidity levels, with a maximum relative humidity rating of 80% RH for both operation and storage situations, thus making it suitable for various deployment scenarios.

The motor is equipped with a straight shaft end featuring a key design, allowing for compatibility with various mounting configurations. However, it should be noted that this model does not come with a brake. In terms of installation, the SGMPH-08AAE41D motor can achieve optimal performance at altitudes of up to 1000 meters above sea level, broadening its usability within diverse industrial applications.
