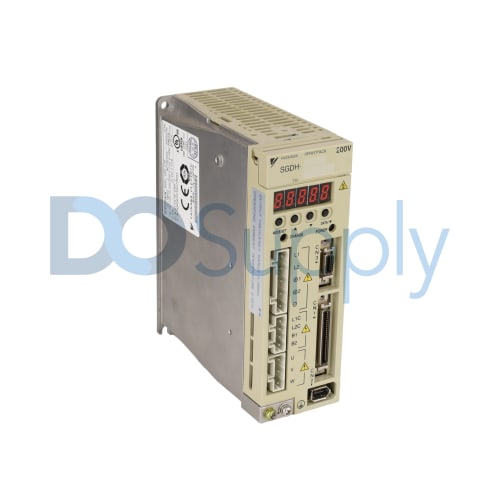

Product image is representative; revision or series may vary. Contact us to request a specific version.
SGDH-A3AE
The Yaskawa SGDH-A3AE is a compact servo amplifier that operates efficiently within the SGDH series. This unit is rated at 30 watts and employs a three-phase input. It has a continuous output current of 0.44 A, with a peak output current rating reaching 1.3 A.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGDH-A3AE
| Manufacturer | Yaskawa |
|---|---|
| Product Line | SGDH |
| Part Number | SGDH-A3AE |
| Weight | 1.63 lbs (0.74 kg) |
| Product | Servo Amplifier |
| Power Rating | 30 W |
| Input Type | Pulse/Analog |
| Voltage Rating | 240 V |
| Voltage Type | DC |
| Number of Phases | Three Phases |
| Continuous Output Current | 0.44 A |
| Max. Output Current | 1.3 A |
| Control Circuit Supply | 24 V |
| Max. Circuit Input Power | 380 to 480 VAC |
| Operating Frequency | 50/60 Hz |
The Yaskawa SGDH-A3AE is engineered as a servo amplifier, falling under the SGDH series. It boasts a nominal power output of 30 watts, making it suitable for various applications. Designed for three-phase operation, this amplifier runs on a voltage of 240 V DC. In terms of current specifications, it provides a continuous output of 0.44 A, with capabilities of reaching a maximum output current of 1.3 A, which ensures robust performance in demanding tasks.
This amplifier can accept both pulse and analog input signals, offering flexibility for integration into different systems. Supply voltage for the control circuit is set at 24 V, allowing for efficient operation. The SGDH-A3AE is compatible with a wide input power range, accommodating circuit inputs from 380 to 480 VAC.
Operating across a frequency spectrum of 50 to 60 Hz, it guarantees reliable use in standard industrial environments. Additionally, the unit's weight is a mere 0.8 kg, enabling easy installation without adding cumbersome loads to equipment setups. Overall, the Yaskawa SGDH-A3AE servo amplifier is designed to deliver efficient and precise control in various servo applications.
