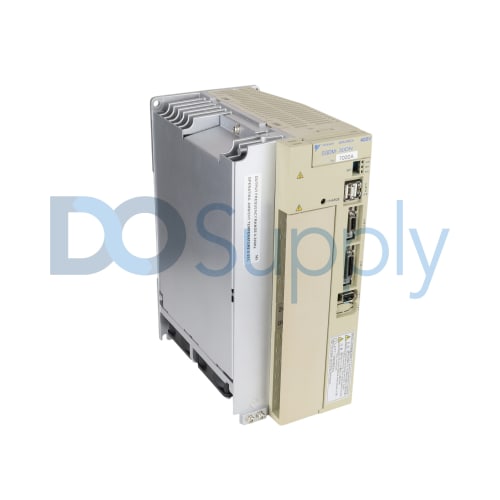

SGDM30DN
The Yaskawa SGDM30DN servo drive, part of the SGDM series, delivers reliable performance for various automation tasks. With a robust power rating of 3,000 W (3 kW), this servopack is optimized for efficient operation.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGDM30DN
| Manufacturer | Yaskawa |
|---|---|
| Product Type | Servo Drive (Servopack) |
| Product Line | SGDM |
| Part Number | SGDM30DN |
| Weight | 9.00 lbs (4.08 kg) |
| Power Rating | 3,000 W (3 kW), 4.02 HP |
| Input Voltage | 380-480 VAC |
| Output Current | 8.5/11.9 A |
| Input Current | 8.5 A |
| Output Frequency | 0-300 Hz |
| Input Phase | 3 Phase |
| Ambient Temperature | 0-55°C |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0-480 VDC |
The SGDM30DN from Yaskawa functions as a reliable servo drive, delivering power ratings of 3,000 W (3 kW) or approximately 4.02 HP. This servopack is engineered to meet the demands of sophisticated control systems, enabling precise motion control. It connects to a three-phase input voltage within the range of 380 to 480 VAC, ensuring compatibility with various setups.
The drive can deliver an output current of either 8.5 A or 11.9 A, providing flexibility based on the application specifics. Operating efficiently at output frequencies ranging from 0 to 300 Hz, this servo drive ensures a comprehensive operational spectrum.
Designed for diverse environments, the SGDM30DN can withstand ambient temperatures from 0°C up to a maximum of 55°C, making it suitable for various industrial applications. It also supports input frequencies of either 50 or 60 Hz. Weighing in at 4.08 kg, this unit is manageable for installation while maintaining robust functionality throughout its use. Its output voltage capability stretches from 0 to 480 VDC, which aligns well with a variety of electrical requirements in servo applications.
