Yaskawa SGMP Sigma Series SGMP-01A312P

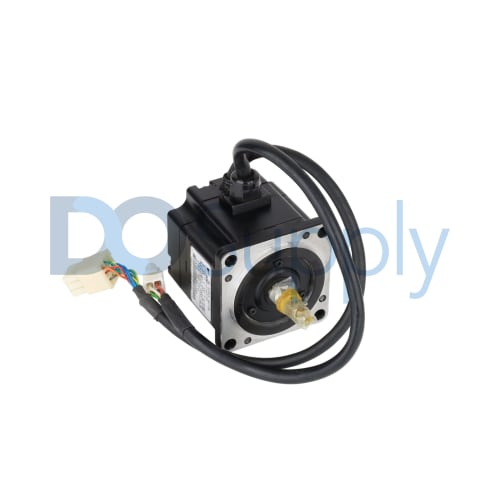

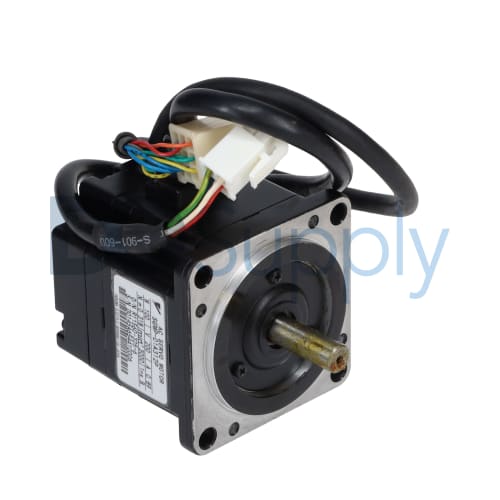

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGMP-01A312P

|
Need a Specific Revision?

The Yaskawa SGMP-01A312P is a compact AC servo motor designed for precise motion control. With a rated power of 100 W and a voltage rating of 200V AC, it is suitable for a variety of applications requiring meticulous performance.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGMP-01A312P

ManufacturerYaskawa
Product TypeAC Servo Motor
Product LineSGMP Sigma Series
Part NumberSGMP-01A312P
Weight1.75 lbs (0.79 kg)
SeriesAC Motors
Rated Voltage200V AC
Rated Power100 W
Frame SizeCompact
Rated Current0.89 A
Shaft TypeRound shaft
Rated Speed3000 RPM
Encoder TypeIncremental
MountingFlange
Phase3-phase
Protection ClassIP65 (front)
Insulation ClassClass B
ApplicationPrecision motion
Request a Repair

The Yaskawa SGMP-01A312P is an efficient AC servo motor crafted to deliver precise motion capabilities. It operates at a rated voltage of 200V AC and provides an output power of 100 W. This motor is engineered with a compact frame size, ideal for applications where space is limited. It operates at a current of 0.89 A.

At a rated speed of 3000 RPM, the motor can achieve high performance in various settings. A round shaft design facilitates straightforward integration into existing systems, while flange mounting provides secure installation. This three-phase motor employs an incremental encoder to ensure precise feedback on position and velocity, enhancing its control capabilities.

The SGMP-01A312P is built to endure various operating conditions. It comes with an IP65 protection rating on the front, indicating resistance to dust and water infiltration. The insulation class is rated at Class B, allowing for a maximum temperature of 130°C. With a weight of 0.45 kg, this motor is lightweight yet durable, making it suitable for a wide range of precision motion applications.
