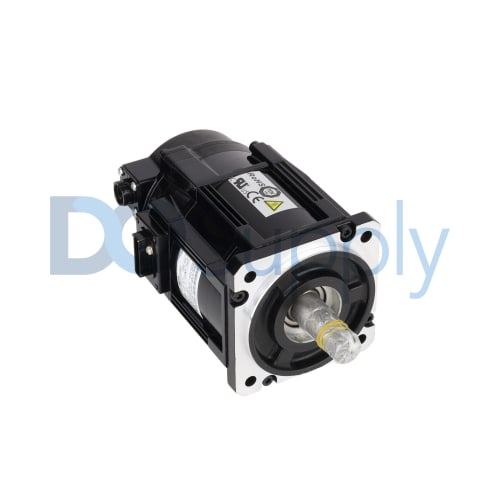

Yaskawa Sigma 5 SGMGV-05D3A61

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGMGV-05D3A61

|
Need a Specific Revision?

The Yaskawa SGMGV-05D3A61 is a robust brushless servo motor designed for precise control and operation. Featuring a power rating of 450 watts and operating at 400 volts AC, this motor is engineered for reliable performance under demanding conditions.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGMGV-05D3A61

ManufacturerYaskawa
Product LineSigma 5
Part NumberSGMGV-05D3A61
Weight10.00 lbs (4.54 kg)
ProductBrushless Servo Motor
Power Rating450 W
Voltage Rating400 V
Voltage TypeAC
Encoder Resolution20-Bit
Encoder TypeAbsolute
Shaft EndStraight with Key
Number of PhasesSingle
Maximum Ambient Temperature60 degrees Celsius
Minimum Ambient Temperature0 degrees Celsius
Maximum Operating Humidity80% non-condensing relative humidity
Maximum Storage Humidity80% non-condensing relative humidity
Maximum Operating Altitude1000m above sea level
Request a Repair

The Yaskawa SGMGV-05D3A61 is a precision-engineered brushless servo motor tailored for various industrial applications. With a power output of 450 watts, this unit operates seamlessly on a 400-volt AC voltage supply. The motor supports a single-phase configuration, making it versatile for a range of systems. The incorporation of a 20-bit absolute encoder ensures high-resolution feedback, which is crucial for precise positioning and control. In terms of environmental tolerance, the motor can function within ambient temperatures from 0 to 60 degrees Celsius, accommodating diverse working conditions. Additionally, it is rated for operation where relative humidity does not exceed 80% without condensation, ensuring durability in varying climates. This motor's design enables optimal performance even at elevations of up to 1000 meters above sea level, thereby expanding its usability in various locations. The shaft end is straight and features a key, facilitating easy integration into existing setups and ensuring reliable mechanical connections.
