SGMGV-13ADA61

Need a Specific Revision?

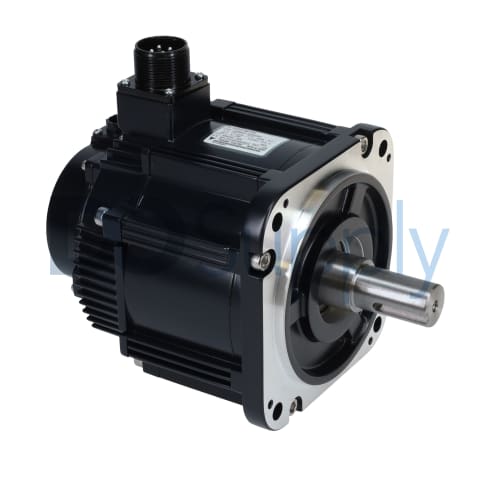

The Yaskawa SGMGV-13ADA61 is a reliable servo motor with an output rating of 1.3 kilowatts. Designed to operate within a rated voltage of 200 volts AC, this motor is ideal for various industrial applications.

Ships Tomorrow, May 23.

2 Year DO Supply Warranty

In Stock

Ships from Raleigh, NC

Learn more

Warranty

We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Shipping

Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
Payment Methods

AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
Repairs & Exchanges

Repair and exchange services for all existing automation products.
Reseller Options

Drop shipping, blind shipping, and account shipping with no extra fees.

Technical specifications for SGMGV-13ADA61

Manufacturer	Yaskawa
Series	Sigma 5
Part Number	SGMGV-13ADA61
Output Rating	1.3 kilowatt
Product Type	Servo motor
Ambient Operating Temperature	0 to 40°C (in a non-condensing environment)
Rated Power Supply Voltage	200 Volts AC
Encoder Type	Incremental encoder
Rated Current	10.7 Amperes
Rated Torque	8.34 Newton-meter
Protection Class	IP67
Shaft Shape	Straight shaft with key and tap
Storage Temperature	-20 to 80°C (in a non-condensing environment)
Instantaneous Peak Torque	23.3 Newton-meter
Rated Speed	1,500 revolutions per minute (RPM)
Maximum Current	28 Amperes
Cooling Method	Self-cooling
Encoder Resolution	20-bit

Request a Repair

The Yaskawa SGMGV-13ADA61 servo motor embodies precision and efficiency within the Sigma 5 series. This motor has an output of 1.3 kilowatts and operates at a rated voltage of 200 volts AC, making it suitable for various industrial applications. It is designed for environments with an ambient temperature from 0 to 40°C and is built to withstand non-condensing conditions.

In terms of performance, the SGMGV-13ADA61 delivers a rated torque of 8.34 Newton meters and can generate an instantaneous peak torque of 23.3 Newton meters. The motor achieves a rated speed of 1,500 revolutions per minute (RPM). It draws a rated current of 10.7 Amps and can reach a maximum current of 28 Amps when required.

The servo motor utilizes an incremental encoder that offers a resolution of 20 bits for accurate position feedback. The shaft features a straight design with a key and tap, which aids in secure coupling. Furthermore, the SGMGV-13ADA61 is protected by an IP67 rating, meaning it is well-suited for applications that may expose it to moisture or dust.

The motor maintains performance during operation with a self-cooling method. Additionally, the unit can be stored at -20 to 80°C, highlighting its versatility and robustness in various environments.
