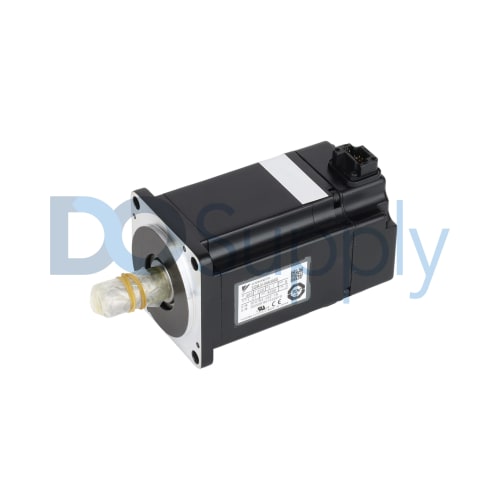

SGMJV-04A3A6S

The Yaskawa SGMJV-04A3A6S is a rotary servo motor specifically engineered for efficient operation in a variety of applications. This motor provides a rated output power of 400 watts, enabling it to deliver high torque and speed for demanding tasks. It operates under an AC voltage supply of 200 volts, making it suitable for many standard industrial settings.

An absolute encoder with a resolution of 20 bits is integrated into this motor, enhancing its ability to accurately determine position, which is crucial for applications requiring high precision. The design follows a standard configuration, while the shaft ends are straight and include both a key and a tap, facilitating straightforward installation processes via the flange method.

The SGMJV-04A3A6S can achieve a maximum rotational speed of 6000 RPM, which allows it to perform efficiently in fast-paced operations. It also possesses a vibration level rating of V15, indicating its suitability for environments with moderate vibration. For electrical insulation, it ensures reliability with a resistance rating of 500 V DC, which is essential for safety and longevity in electrical applications. Additionally, this model has a heat resistance grade of B, allowing it to perform consistently under varying thermal conditions.
