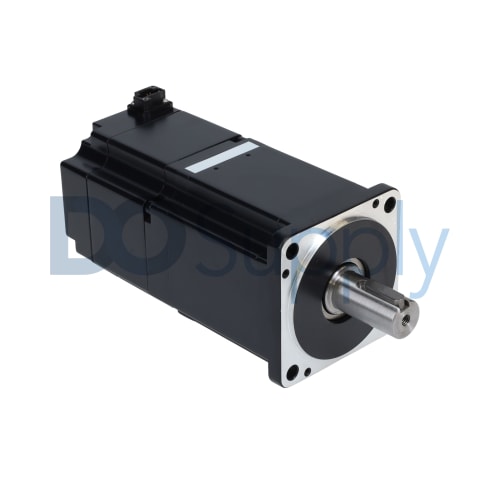

Yaskawa Sigma 5 SGMJV-08A3M6C

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGMJV-08A3M6C

|
Need a Specific Revision?

The Yaskawa SGMJV-08A3M6C is an AC servo motor designed for diverse applications requiring precision control. Operates on a supply voltage of 200V AC with a nominal current of 4.7A and a maximum current of 16.9A at speeds reaching up to 6000 RPM.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGMJV-08A3M6C

ManufacturerYaskawa
Product LineSigma 5
Part NumberSGMJV-08A3M6C
Weight7.69 lbs (3.49 kg)
Motor TypeAC Servo Motor
Keyed ShaftYes
Medium-InertiaYes
Supply Voltage200V AC
Holding Brake Voltage24V DC
Nominal Current4.7A
Maximum Current16.9A
Operating Temperature0 to 40 degrees Celsius
Storage Temperature-20 to 60 degrees Celsius
Rated Speed3000 RPM
Maximum Speed6000 RPM
IP RatingIP65
Holding BrakeIncluded
Request a Repair

The Yaskawa SGMJV-08A3M6C is characterized as an AC servo motor with specific attributes that enhance its functionality in varied industrial scenarios. It operates on a supply voltage of 200 volts AC, providing reliable performance for demanding applications. The motor supports a nominal current of 4.7 amperes, with the capability to reach a maximum current of 16.9 amperes, making it adaptable for tasks requiring significant torque.

This servo motor includes a holding brake that operates at 24 volts DC, ensuring accurate positioning and stability during motion halt. Rated for a maximum speed of 6000 RPM and a nominal speed of 3000 RPM, it enables dynamic movements across a range of speed requirements.

Operating temperature conditions are crucial; this motor functions optimally from 0 to 40 degrees Celsius. For storage, it can withstand temperatures ranging from -20 to 60 degrees Celsius, which contributes to its versatility in various settings. The SGMJV-08A3M6C features an IP rating of IP65, signifying robust protection against dust and moisture, ensuring reliable operation in harsh environments. Its keyed shaft configuration is designed for enhanced stability and precision in motor applications.
