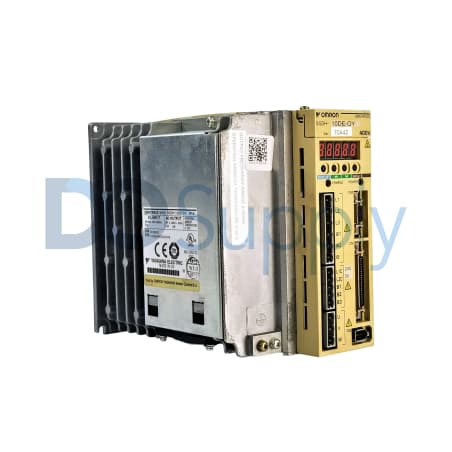

Yaskawa Sigma II SGDH-10DEOY

SGDH-10DEOY

|
Need a Specific Revision?

The Yaskawa SGDH-10DEOY is a well-engineered servo drive belonging to the Sigma II series. It operates at a power rating of 1 kW, making it adept for various industrial applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more
  • Warranty

    We sell industrial automation parts backed by our 2-year DO Supply Warranty.

  • Shipping

    Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.

  • Payment Methods

    AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.

  • Repairs & Exchanges

    Repairs and exchanges are available for all automation products.

  • Reseller Options

    Drop shipping, blind shipping, and account shipping with no extra fees.

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGDH-10DEOY

ManufacturerYaskawa
SeriesSigma II
Part NumberSGDH-10DEOY
Product TypeServo Drive
Power Rating1 kW
Ambient Temperature0-55°C
Input Voltage380-480 V AC
Weight0.62 kg
Input Current3.5 A
Output Voltage0-480 V
Input Phase3 Phase
Output Frequency0-300 Hz
Input Frequency50/60 Hz
Request a Repair

The SGDH-10DEOY from Yaskawa's Sigma II series is designed as a robust servo drive. Its rated power stands at 1 kW, offering efficient control and management of motor operations. This device functions effectively within a voltage input range of 380 to 480 V AC in a three-phase configuration.

Current consumption is at 3.5 A, ensuring reliable operation across various applications. The output capabilities extend to voltages ranging from 0 to 480 V, providing flexibility in system design. It can operate across a frequency spectrum, handling input frequencies of either 50 or 60 Hz, and adjusting its output frequency from 0 to 300 Hz.

Temperature resilience is notable, with an operational range of 0 to 55 degrees Celsius, allowing the drive to perform under varying ambient conditions without compromising functionality. The unit has a compact weight of 0.62 kg, making it suitable for applications where space and weight is a consideration.
