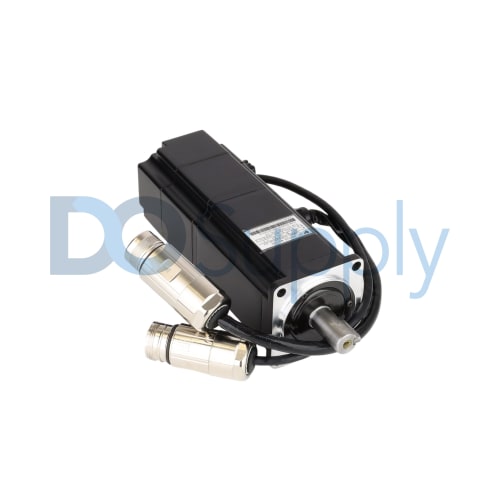

Yaskawa Sigma II SGMAH-03DAA6CD-OY

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGMAH-03DAA6CD-OY

|
Need a Specific Revision?

The Yaskawa SGMAH-03DAA6CD-OY is an AC servo motor from the Sigma II series, designed to deliver precise motion control. This motor operates at a power rating of 0.3 kW and is capable of handling a voltage of 400 V. It features an incremental encoder with a resolution of 13 bits to ensure accurate feedback.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGMAH-03DAA6CD-OY

ManufacturerYaskawa
Product LineSigma II
Part NumberSGMAH-03DAA6CD-OY
Weight5.00 lbs (2.27 kg)
ProductAC Servo Motor
Power Rating0.3 kW
Voltage Rating400 V
Voltage TypeAC
Encoder TypeIncremental
Encoder Resolution13 Bit
Shaft EndStraight with key and tap
Brake24 VDC
Speed3000 RPM
Torque Rating0.955 Nm
Current Rating1.3 A
Maximum Ambient Operating Humidity80% (non-condensing)
Maximum Ambient Storage Humidity80% (non-condensing)
Maximum Operating Altitude1000 meters above sea level
Request a Repair

The SGMAH-03DAA6CD-OY from Yaskawa, part of the Sigma II series, represents an advanced AC servo motor adept at fulfilling various motion control tasks. It boasts a power output of 0.3 kW and operates efficiently at a voltage level of 400 volts, configured for AC applications. The motor is engineered with an incremental encoder that features a resolution of 13 bits, which enhances positioning accuracy across various applications.

Designed to meet the demands of performance, the SGMAH-03DAA6CD-OY achieves a maximum speed of 3000 RPM, providing responsive control and quick operation. It features a maximum torque rating of 0.955 Newton meters, with a current requirement of 1.3 amperes, making it suitable for a variety of engineering tasks. The motor is equipped with a 24 VDC braking system, contributing to its operational safety and effectiveness.

The shaft end is designed straight and includes a key and tap, which can aid in secure attachment. Further, the motor can endure ambient conditions with humidity levels reaching up to 80% without condensation impacting its function, making it adaptable to various environments. Storage conditions mirror these specifications, enabling safe handling over its lifecycle. Additionally, the unit supports operation at elevations of up to 1000 meters above sea level, granting it a wide range of application capabilities in different operational scenarios.
