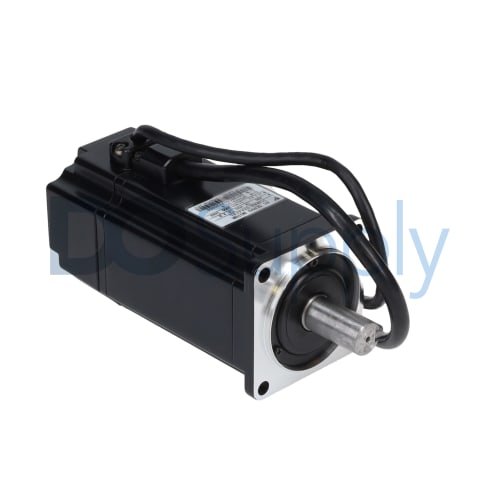

SGMAH-04AAF41
The SGMAH-04AAF41, a servo motor from Yaskawa’s Sigma II series, operates at 0.4 kilowatts and has high-performance specifications. It features a 1-phase input and is designed for robust applications, with a max. speed of 5,000 RPM.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGMAH-04AAF41
| Manufacturer | Yaskawa |
|---|---|
| Series | Sigma II |
| Part Number | SGMAH-04AAF41 |
| Input Phase Type | 1-phase input |
| Motor Type | Super high power rate motor |
| Encoder Type | Incremental encoder |
| Rated Output | 0.4 kilowatt |
| Rated Speed | 3,000 revolutions per minute (RPM) |
| Maximum Speed | 5,000 revolutions per minute (RPM) |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Product Type | Servo motor |
| Encoder Resolution | 13-bit |
| Protection Class | IP55 |
| Shaft Shape | Straight shaft with keyway |
| Main Circuit Supply Voltage | 200 Volts AC |
| Torque Rating | 1.27 Newton-meter |
| Mounting Method | Flange mount |
The Yaskawa SGMAH-04AAF41 is a servo motor known for its outstanding performance in power applications. Rated at 0.4 kilowatts, this motor operates efficiently on a single-phase input, providing essential power for various automatic systems. The motor reaches a rated speed of 3,000 revolutions per minute (RPM) while capable of achieving a peak speed of 5,000 RPM, demonstrating its high-performance capabilities. Its incremental encoder employs a 13-bit resolution, ensuring precision in operation and position feedback critical for advanced motion control.
This motor is designed with an IP55 protection rating, safeguarding its internal components against dust and water, thus extending its usability in different environments. The straight shaft features a keyway for secure attachment, ensuring reliability and maintaining performance during operation. Additionally, it is mountable via a flange method, facilitating installation in various configurations.
Regarding ambient conditions, the SGMAH-04AAF41 can function within a temperature range of 0 to 40°C in non-condensing settings and safely stored within a temperature bracket of -20 to 85°C. The motor's main circuit supply voltage operates at 200 Volts AC. It produces a torque rating of 1.27 Newton-meters, making it suitable for dependable power transmission applications. Overall, this servo motor combines a durable construction with high-speed capabilities tailored for demanding industrial tasks.
