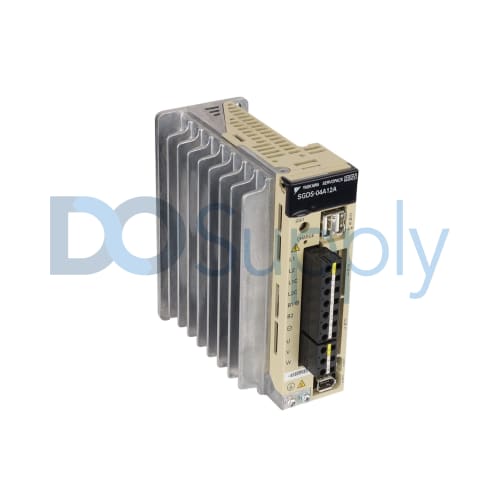

Product image is representative; revision or series may vary. Contact us to request a specific version.
SGDS04A12A
The Yaskawa SGDS04A12A is an AC servo drive in the Sigma III series designed for precision motor control. It operates on an input voltage of 200 to 230 VAC and requires a 1-phase power supply.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGDS04A12A
| Manufacturer | Yaskawa |
|---|---|
| Product Line | Sigma III |
| Part Number | SGDS04A12A |
| Weight | 2.13 lbs (0.96 kg) |
| Name | AC Servo Drive |
| Input Voltage | 200 to 230 VAC |
| Number of Phases | 1-phase |
| Supply Frequency | 50/60 Hz |
| Input Current | 4.7A |
| Output Voltage | 0 to 230 VAC |
| Output Number of Phases | 3-phase |
| Output Frequency Range | 0 to 300 Hz |
| Output Power | 0.4 kW (0.54 HP) |
| Output Current | 2.8A |
The Yaskawa SGDS04A12A, part of the Sigma III series, is classified as an AC servo drive. It functions efficiently within an input voltage range of 200 to 230 VAC with a 1-phase configuration. The servo drive draws an input current of 4.7A and operates at a supply frequency of 50/60 Hz.
Regarding the output specifications, the SGDS04A12A offers an adjustable output voltage from 0 to 230 VAC. The drive generates a 3-phase output and can handle a maximum output frequency of 300 Hz, providing flexibility for various motor applications. This drive supplies a power output of 0.4 kW, which translates to approximately 0.54 HP. Additionally, its output current rating stands at 2.8A, enabling it to support various load requirements effectively.
