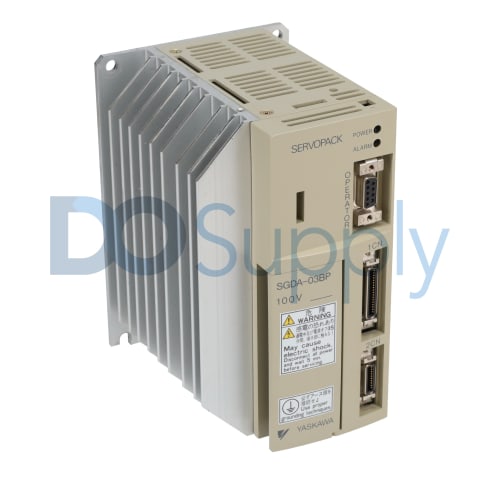

Product image is representative; revision or series may vary. Contact us to request a specific version.
SGDA-03BP
The SGDA-03BP from Yaskawa is an AC servo drive specifically designed as a Servopack. With a compact design, it operates at a frequency of either 50 or 60 Hz, utilizing an input voltage of 100 V, and providing power up to 0.40 HP.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SGDA-03BP
| Manufacturer | Yaskawa |
|---|---|
| Product Type | AC Servo Drive |
| Product Line | Sigma Series |
| Part Number | SGDA-03BP |
| Weight | 3.69 lbs (1.67 kg) |
| Frequency | 50/60 Hz |
| Type | Servopack |
| Input Voltage | 100 V |
| Rated Power | 0.40 HP |
| Rated Current | 3.7 A |
| Cooling Type | Natural Cooling |
| Phase Configuration | Single Phase |
| Motor Compatibility | SGM Servomotor |
| Max Output Power | 300 W |
| Control Method | Position Control |
| Protection Class | IP20 |
The Yaskawa SGDA-03BP AC servo drive belongs to the Sigma Series and is engineered for high-performance motor control applications. Operating effectively at a frequency of 50/60 Hz, this servo drive leverages an input voltage of 100 V. It is specifically rated for a maximum power output of 0.40 HP, which equates to approximately 300 W. With a rated current of 3.7 A, this drive is designed to manage substantial loads while ensuring reliable operation across various conditions.
This unit uses natural cooling methods to maintain optimal operating temperatures. It is configured for single-phase connections and integrates seamlessly with SGM servomotors, extending its applications in various automation processes. The control method employed is position control, ensuring that precise movements and positioning tasks are executed effectively. It is constructed to meet an IP20 protection class rating, indicating suitable use in dry, indoor environments where protection against solid objects larger than 12.5 mm is provided. The overall weight of the SGDA-03BP is 1.66 kg, which enhances its suitability for compact installations while providing efficient servo control.
