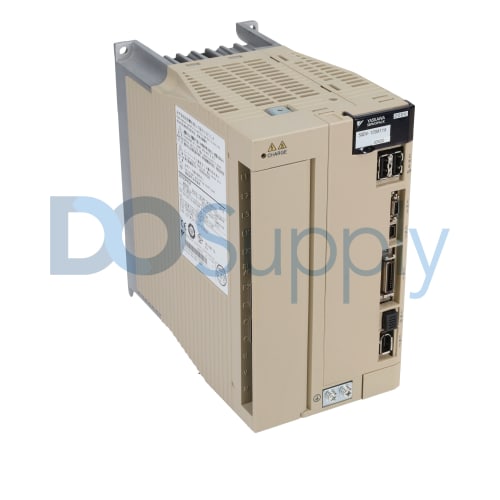

Yaskawa Sigma V SGDV SGDV-120A11A008000

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGDV-120A11A008000

|
Need a Specific Revision?

The Yaskawa SGDV-120A11A008000 servo drive is a reliable choice for complex applications, capable of functioning within an input voltage range of 220-230V AC. Designed to operate efficiently, it supports both advanced manufacturing and milling tasks.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGDV-120A11A008000

ManufacturerYaskawa
Product LineSigma V SGDV
Part NumberSGDV-120A11A008000
Weight7.31 lbs (3.32 kg)
SeriesAC Drives
ProductServo Drive
Input Voltage Type1-Phase AC
Input Voltage Range220-230V AC
Input Frequency50/60 Hz
Input Current16A
Output Voltage Type3-Phase AC
Output Voltage Range0-230V AC
Output Frequency0-400 Hz
Output Current11.6A
Output Power1.5 kW
Ambient Air Temperature0 to 55 degrees Celsius
Advanced Manufacturing ApplicationsSupported
Milling ApplicationsSupported
Request a Repair

The Yaskawa SGDV-120A11A008000 servo drive is engineered to handle rigorous industrial tasks. It operates on a 1-phase AC input voltage, effectively accepting a voltage range of 220 to 230 volts. This drive is compatible with both 50 Hz and 60 Hz input frequencies, which adds flexibility for various setups.

With an input current of 16 amperes, this unit transforms energy for operational efficiency, converting it into 3-phase AC voltage that ranges from 0 to 230 volts. The drive is capable of functioning at output frequencies from 0 to 400 Hz, providing versatility for different motor control scenarios. Its current output is rated at 11.6A, and it delivers a power output of 1.5 kilowatts, making it suitable for demanding applications.

Designed to perform in ambient conditions, the servo drive operates effectively from 0 to 55 degrees Celsius, ensuring reliability across different environments. This unit is particularly suitable for advanced manufacturing setups, as well as milling applications, highlighting its adaptability to various industrial needs.
