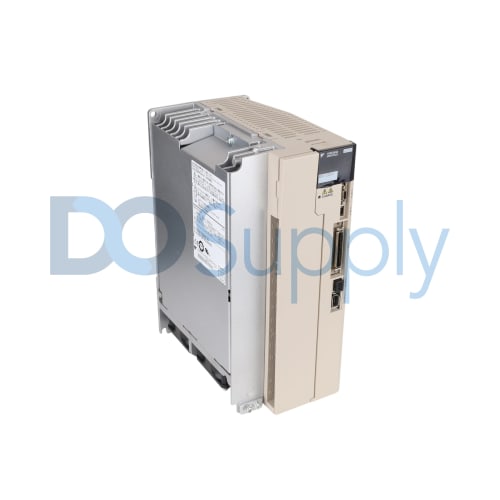

Yaskawa Sigma V SGDV SGDV-120D01A

Product image is representative; revision or series may vary. Contact us to request a specific version.

SGDV-120D01A

|
Need a Specific Revision?

The Yaskawa SGDV-120D01A, part of the Sigma V SGDV series, is a versatile three-phase solution for motion control applications. This drive supports a main circuit voltage range of 380 to 480 volts AC and operates using a 24-volt DC control power supply. With continuous output currents of 11.9 amps RMS and a peak output of 28 amps RMS, it is capable of handling demanding tasks.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for SGDV-120D01A

ManufacturerYaskawa
Product LineSigma V SGDV
Part NumberSGDV-120D01A
Weight8.50 lbs (3.86 kg)
Phase3
Main Circuit380–480V AC
Control Power24V DC
Continuous Output Current11.9 A RMS
Max. Output Current28 A RMS
Regenerative ResistorExternal
Overvoltage CategoryIII
Control MethodIGBT-PWM
Speed Control Range84:20:00
Torque Control Tolerance±1%
Sequence Output3 channels
Analog Monitor Outputs2 channels
Safety Output OptionEDM1
Humidity≤90% RH (non-condensing)
Request a Repair

The SGDV-120D01A by Yaskawa is an advanced digital servo drive belonging to the Sigma V SGDV series. It is built for three-phase operation and connects to a main circuit using voltage levels between 380 and 480 volts AC. The control power enables the drive to work effectively with a standardized 24 volts DC supply, ensuring reliable performance.

With a continuous output current rating of 11.9 amps RMS, it can handle significant loads, while its maximum output capacity can reach 28 amps RMS, making it suitable for robust applications. The device employs IGBT-PWM control technology, which optimizes efficiency and precision in motion control tasks.

The servo drive offers a speed control range set at 84:20:00, allowing for extensive flexibility during operation. Torque is managed within a strict tolerance of ±1%, promoting consistency in performance. Users can benefit from three sequence output channels, as well as two analog monitor outputs for real-time data feedback.

For enhanced functionality, an external regenerative resistor can be connected, aiding in energy recovery during braking phases. The equipment is categorized under overvoltage category III, reinforcing its operation under various electrical conditions. Designed for environments where humidity is kept at a maximum of 90% relative humidity without condensation, the SGDV-120D01A drive remains reliable and efficient in a variety of industrial settings, alongside an optional safety output feature designated as EDM1.
