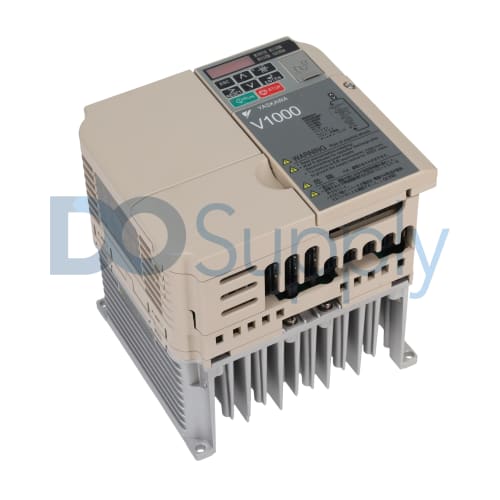

Yaskawa V1000 CIMR-VU2A0020FAA

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-VU2A0020FAA

|
Need a Specific Revision?

The Yaskawa CIMR-VU2A0020FAA is an AC drive belonging to the V1000 series. This unit provides a power rating of 3.7 kW and operates at input voltages of 200-240V AC, suitable for 3-phase systems. It can deliver output voltage ranging from 0 to 240V AC and rated output frequency from 0 to 400 Hz, making it a versatile choice for various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-VU2A0020FAA

ManufacturerYaskawa
Product LineV1000
Part NumberCIMR-VU2A0020FAA
Weight5.00 lbs (2.27 kg)
Power Rating3.7 kW
Input Voltage200-240V AC
Phase Type3 Phase
Output Voltage0-240V AC
Rated Output Current19.6A
Rated Output Frequency0-400 Hz
Control MethodCurrent vector control
Carrier FrequencyUp to 15 kHz
Height5.89"
Width2.68"
Depth2.99"
Enclosure TypeNEMA 1 (IP20)
Ambient Temperature-10°C to +50°C
Request a Repair

The Yaskawa part CIMR-VU2A0020FAA is categorized as an AC drive within the V1000 series. It boasts a compact design and operates at a power rating of 3.7 kW. Designed for 3-phase applications, it accepts an input voltage of 200-240V AC and can deliver an output voltage up to 240V AC.

This unit operates with a rated output current of 19.6A and allows for a frequency adjustment between 0 to 400 Hz. Current vector control serves as its operational method, supporting efficient and responsive motor control. Additionally, the drive can function at carrier frequencies of up to 15 kHz.

With dimensions measuring 5.89 inches high, 2.68 inches wide, and 2.99 inches deep, it is relatively easy to install in various setups. The total weight is 1.8 pounds, making it manageable for integration into existing systems. Housed in a NEMA 1 enclosure with IP20 classification, it is suitable for applications not exposed to harsh environments. Its operational temperature range spans from -10°C to +50°C, allowing for flexibility in application settings.
