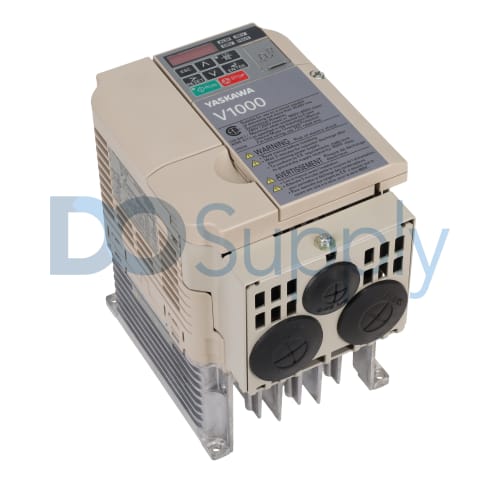

Yaskawa V1000 CIMR-VU4A0009FAA

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-VU4A0009FAA

|
Need a Specific Revision?

The Yaskawa CIMR-VU4A0009FAA is an AC drive designed to provide efficient motor control. Operating within an input voltage range of 380 to 480 VAC, it accommodates 3-phase power systems and supports input frequencies of 50/60 Hz.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-VU4A0009FAA

ManufacturerYaskawa
Product LineV1000
Part NumberCIMR-VU4A0009FAA
Weight3.31 lbs (1.50 kg)
Description of ProductAC Drive
Input Voltage380 to 480 VAC
Input Frequency50/60 Hz
Input Current9.4A / 8.2A
Number of Phases3-phase
Output Voltage0 to 480 VAC
Output Frequency0 to 400 Hz
Output Current8.8A / 7.2A
Degree of ProtectionIP20
EnclosureNEMA 1
Request a Repair

The Yaskawa part number CIMR-VU4A0009FAA operates as a robust AC drive within the V1000 series. This device ensures efficient control of various applications while accepting an input voltage range of 380 to 480 VAC. Designed for 3-phase systems, it operates at input frequencies of either 50 or 60 Hz. Under typical conditions, the input current can be rated as either 9.4A or 8.2A, offering flexibility for different installation scenarios.

The output capabilities of this unit are equally impressive. It provides an adjustable output voltage up to 480 VAC and allows for output frequencies ranging from 0 to 400 Hz, accommodating a variety of motor requirements. The output current can reach up to 8.8A or can operate at a reduced capacity of 7.2A, making it versatile for differing load conditions.

The device's compact build makes it relatively lightweight at 1.9 kg (or 4.2 lbs.), ensuring easier handling during installation. The enclosure has an IP20 rating, providing adequate protection in indoor environments. It is also classified under NEMA 1 standards, indicating its appropriateness for non-hazardous settings. Overall, the CIMR-VU4A0009FAA AC drive is engineered for reliability and performance across various industrial applications.
