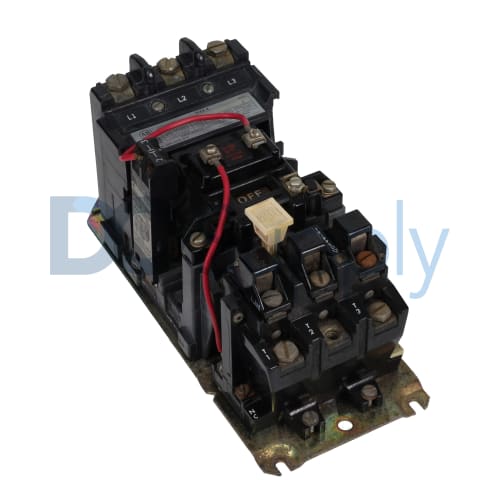

Allen Bradley 509-COD

Product image is representative; revision or series may vary. Contact us to request a specific version.

Allen Bradley

509-COD

|
Need a Specific Revision?

The Allen Bradley 509-COD is available with a 2-Year DO Supply warranty. Request a quote now and receive a rapid response.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 509-COD

ManufacturerAllen Bradley
Product TypeNon-reversing motor starter
Part Number509-COD
UPC662072326701
Weight5.75 lbs (2.61 kg)
SeriesBulletin 509
Starter MethodDirect-On-Line (DOL)
ConstructionOpen, non-combination
Rated Frequency50/60 Hz
Overload Release ClassClass 30
Rated Voltage110/120 VAC
Main Circuit ConnectionScrew terminals
Operating VA Burden38 VA (sealed coil)
Overload TechnologyEutectic alloy
Short-Circuit ReleaseYes
NEMA SizeSize 2
Continuous Current45 A
Service Limit Current52 A
Request a Repair

The Allen Bradley 509-COD, part of the Bulletin 509 series, is designed as a non-reversing motor starter. This component employs a Direct-On-Line (DOL) method, ensuring simplicity in starting operations. The device is built with an open, non-combination enclosure that accommodates easy access.

Designed for commercial applications, the 509-COD operates effectively at rated voltages between 110 and 120 VAC and is rated for frequencies of 50/60 Hz. This starter has a continuous current rating of 45 A, accommodating varying loads while its service limit current reaches up to 52 A. The overload protection is classified under Class 30, which is essential for maintaining motor safety and performance.

The 509-COD leverages eutectic alloy technology, offering robust overload management. With a short-circuit release feature, it enhances the overall reliability of motor operations. It has a specified operating VA burden of 38 VA with a sealed coil configuration. Main circuit connections utilize screw terminals, which facilitate secure and straightforward wiring, catering to NEMA Size 2 standards, making it a suitable choice for various industrial environments.
