1305-AA04A

Revisions: Ser A Ser B Ser C

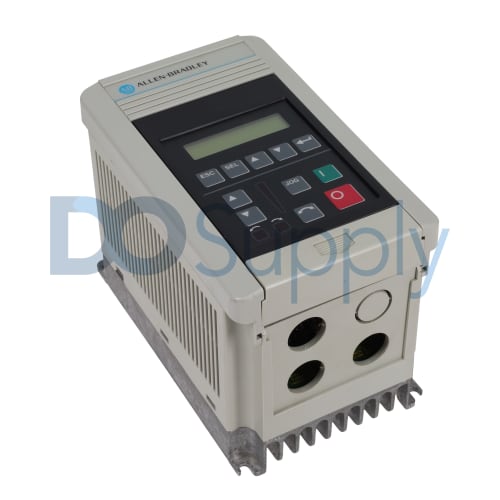

Description: The Allen-Bradley 1305-AA04A drive is an AC-powered adjustable frequency drive. It has been designed and manufactured as part of the Allen-Bradley 1305 AC Drives series. The 1305-AA04A adjustable frequency drive has a voltage rating of 200 to 230 Volts AC at 50 to 60 Hertz frequency. It supports single-phase and 3-phase input voltage. The 1305-AA04A adjustable frequency drive supports 1 Horsepower of output power with 3-phase input voltage and 0.75 Horsepower of output power with single-phase input voltage.
In Stock Ships Today
Request a quote for 1305-AA04A

Description: The Allen-Bradley 1305-AA04A drive is an AC-powered adjustable frequency drive. It has been designed and manufactured as part of the Allen-Bradley 1305 AC Drives series. The 1305-AA04A adjustable frequency drive has a voltage rating of 200 to 230 Volts AC at 50 to 60 Hertz frequency. It supports single-phase and 3-phase input voltage. The 1305-AA04A adjustable frequency drive supports 1 Horsepower of output power with 3-phase input voltage and 0.75 Horsepower of output power with single-phase input voltage.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A Ser B Ser C

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1305-AA04A.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 3.8 with 17 reviews

    Technical Specifications for 1305-AA04A

BrandAllen-Bradley
Input Voltage, 3-Phase:200-230 VAC
Analog outputOne (1) 0-10 VDC
Analog inputOne (1) 4-20 mA One (1) 0-10 VDC
Discrete Outputs:One (1) Form A; One (1) Form C; One (1) Open collector output
Discrete Inputs:Eight (8) inputs
Operating altitudeAbove 1,000 m (3,300 ft), derate at 6% of drive rated amps per 1000 m
Operating temperature0 to 50oC; Optional Enclosures: 0 to 40oC
Cooling MethodNatural convection
EnclosureIP30 (NEMA 1)
Output power:0.75 kW (1.0 HP) @ 3-Phase; 0.37 kW (0.5 HP) @ 1-Phase
Output current:4.5 A @ 3-Phase; 3.0 A @ 1-Phase
Output frequency:0-400 Hz
Output Voltage:0-230 VAC, 3-Phase
Product Family:1305
ManufacturerRockwell Automation / Allen-Bradley
Part Number/Catalog No.1305-AA04A
Product Line1305 AC Drives
Enclosure TypeIP 30 (NEMA Type 1)
Voltage200-240V, Single Phase or 200-230V Three Phase
Human Interface ModulesNo HIM
LanguageEnglish
Horsepower1 HP
Motor Rating (kW, Output Current).75 kW 4.5 A
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1305-AA04A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1305-AA04A units instead of migration.

BrandAllen-Bradley
Input Voltage, 3-Phase:200-230 VAC
Analog outputOne (1) 0-10 VDC
Analog inputOne (1) 4-20 mA One (1) 0-10 VDC
Discrete Outputs:One (1) Form A; One (1) Form C; One (1) Open collector output
Discrete Inputs:Eight (8) inputs
Operating altitudeAbove 1,000 m (3,300 ft), derate at 6% of drive rated amps per 1000 m
Operating temperature0 to 50oC; Optional Enclosures: 0 to 40oC
Cooling MethodNatural convection
EnclosureIP30 (NEMA 1)
Output power:0.75 kW (1.0 HP) @ 3-Phase; 0.37 kW (0.5 HP) @ 1-Phase
Output current:4.5 A @ 3-Phase; 3.0 A @ 1-Phase
Output frequency:0-400 Hz
Output Voltage:0-230 VAC, 3-Phase
Product Family:1305
ManufacturerRockwell Automation / Allen-Bradley
Part Number/Catalog No.1305-AA04A
Product Line1305 AC Drives
Enclosure TypeIP 30 (NEMA Type 1)
Voltage200-240V, Single Phase or 200-230V Three Phase
Human Interface ModulesNo HIM
LanguageEnglish
Horsepower1 HP
Motor Rating (kW, Output Current).75 kW 4.5 A
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1305-AA04A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1305-AA04A units instead of migration.

s

About 1305-AA04A

The Allen-Bradley 1305-AA04A is an easy-to-use, high-performance variable speed drive with 200-240V AC single-phase voltage rating and a 200-230V AC 3-phase voltage rating. It features fast acceleration times which translate to more cycles per minute and result in increased production. Its standard SCANport connector can link to several communication devices and it is designed for direct connection to an AC power line. The microprocessor-controlled 1305-AA04A Drive is designed for reliable control of AC induction motors. It is part of the Bulletin 1305 Series of adjustable frequency AC drives. The 1305-AA04A produces a PWM adjustable frequency output that varies according to the motor parameters for optimal motor performance. At 3-phase input, the drive has a motor rating of 0.75 kW (1 HP) and an output current rating of 4.5A. When operating with single-phase input, it has a motor rating of 0.55 kW (0.75 HP) and an output current rating of 3A. The 1305-AA04A has a standard English language code. It has been proven to be ideal when used in a range of industries from consumer goods, metals, petrochemical and mining, pulp and paper, and transportation applications. The 1305-AA04A is widely used in high-speed conveyors, monorail installations, food processing and packaging, and grinders.

The 1305-AA04A is an Adjustable Frequency AC drive from Allen-Bradley. This drive is part of the 1305 series which implements speed control using the configurable Volts / Hertz (V/Hz) control method. This drive supports single phase or three-phase input voltage, and delivers different set of output in reference to the input voltage phase.

Specifically, the 1305-AA04A delivers an output voltage of 0-230 Volts AC, 3-Phase towards the partner motor. The output power for 1-Phase input is 0.75 Horsepower or 0.55 Kilowatts and output current of 3 Amperes. For 3-Phase input, the output power is 1 Horsepower or 0.75 Kilowatts while the output current is 4.5 Amperes. The output frequency is 0-400 Hertz, fully programmable, regardless of the input voltage phase.

The 1305-AA04A comes with an IP30 (NEMA 1) enclosure. It uses a natural convection method for drive cooling which means the required installation spacing must be followed for proper flow of air. It requires an ambient temperature of 0-50 degrees Celsius for IP30 enclosure and 0-40 degrees Celsius for optional enclosures. It has an operating altitude of 1000 meters or 3300 feet with 6% deration of rated output current at every 1000 meters of additional altitude.

The 1305-AA04A control inputs include Start ,Stop, Forward/Reverse, Jog, Interlock enable, and configurable switches such as SW1, SW2, and SW3. It also has two (2) analog inputs, one (1) supporting 4-20 mA and one (1) supporting 0-10 Volts DC. Alternatively, an external potentiometer with 10k Ohms, 1 Watt power dissipation.

The 1305-AA04A control output includes one (1) Form A relay contact and one (1) programmable output. It also has one (1) analog output that delivers 0-10 Volts DC output.

FAQ for 1305-AA04A

What are the available I/Os to the 1305-AA04A?


The 1305-AA04A has Start, Stop, Forward/Reverse, jog, Interlock enable and configurable switches such as SW1, SW2 and SW3. It also has Two (2) analog inputs, One (1) supporting 4-20 mA and One (1) supporting 0-10 VDC control inputs and One (1) Form A relay contacts and One (1) Programmable output. It also has One (1) analog output that delivers 0-10VDC control outputs.

What is the output frequency of the 1305-AA04A?


The 1305-AA04A has an output frequency of 0-400 Hz.

Can I operate the 1305-AA04A with single phase voltage input?


Yes. This drive is operable with input supply voltage of 200-230VAC, 1-Phase, 50/60 Hz or 200-230VAC, 3-Phase, 50/60 Hz.

Technical Description of 1305-AA04A

The 1305-AA04A is an adjustable frequency AC drive from Allen-Bradley. This drive is part of the 1305 Series. It is capable of Volts / Hertz (V/Hz) control. This drive is operable with an input supply voltage of 200-230 Volts AC, 1-Phase, 50/60 Hertz or 200-230 Volts AC, 3-Phase, 50/60 Hertz. It delivers an output voltage range of 0-230 Volts AC, 3-Phase, delivers an output power of 1.0 Horsepower or 0.75 Kilowatts @ 3-Phase input and 0.75 Horsepower or 0.55 Kilowatts @ 1-phase input. It has an output current of 4.5 Amperes @ 3-phase input and 3.0 Amperes @ 1-Phase input. It has a common programmable output frequency of 0-400 Hertz. This drive has a NEMA 1 (IP30) enclosure.

Repair Services for 1305-AA04A

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1305-AA04A. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1305-AA04A

Please refer to the manual for more information about the 1305-AA04A such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1305-AA04A Ser A
1305-AA04A/A, Series A, Rev A Request Quote
1305-AA04A Ser B
1305-AA04A/B, Series B, Rev B Request Quote
1305-AA04A Ser C
1305-AA04A/C, Series C, Rev C Request Quote
Common misspellings:
  • l305-AA04A
  • 13o5-AA04A
  • 1305-AAo4A
  • 1305-AA0AA
  • 1305AA04A

Reviews for 1305-AA04A

Internal Review

"The 1305-AA04A is an adjustable frequency AC drive from the 1305 series. The main advantage of this drive is that it can be operated with 1-phase or 3-phase input voltage of 200-230VAC. It has different output sets depending on the input phase of the supply voltage. This feature of the drive contributes to flexibility and application compatibility. " -DO Supply Tech

Dimensions For 1305-AA04A

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 1305-AA04A

Width 4-23/32 in. (120 mm)
Height 7-11/16 in. (195 mm)
Depth w/o Pot. 5-1/2 in. (140 mm)
Depth w/ Pot. 5-23/32 in. (145.1 mm)
Weight 4.2 lb (1.9 kg)
