1305-AA08A-HA2

Revisions: Ser A Ser B Ser C
Description: 1305-AA08A-HA2 1305 AC Drives with IP 30 (NEMA Type 1) enclosure, 200-240V, Single Phase or 200-230V Three Phase rating and HIM with Digital Up-Down Keys interface. English language
In Stock Ships Today
Request a quote for 1305-AA08A-HA2

Description: 1305-AA08A-HA2 1305 AC Drives with IP 30 (NEMA Type 1) enclosure, 200-240V, Single Phase or 200-230V Three Phase rating and HIM with Digital Up-Down Keys interface. English language

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 1305-AA08A-HA2.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.3 with 9 reviews

    Technical Specifications for 1305-AA08A-HA2

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1305-AA08A-HA2
Product Line1305 AC Drives
Enclosure TypeIP 30 (NEMA Type 1)
Voltage200-240V, Single Phase or 200-230V Three Phase
Human Interface ModulesHIM with Digital Up-Down Keys
LanguageEnglish
Horsepower2 HP
Motor Rating (kW, Output Current)1.5 kW 8 A
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1305-AA08A-HA2 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1305-AA08A-HA2 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1305-AA08A-HA2
Product Line1305 AC Drives
Enclosure TypeIP 30 (NEMA Type 1)
Voltage200-240V, Single Phase or 200-230V Three Phase
Human Interface ModulesHIM with Digital Up-Down Keys
LanguageEnglish
Horsepower2 HP
Motor Rating (kW, Output Current)1.5 kW 8 A
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1305-AA08A-HA2 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1305-AA08A-HA2 units instead of migration.

s

About 1305-AA08A-HA2

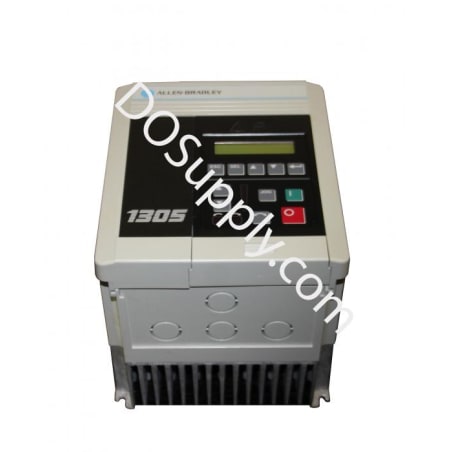

The Allen-Bradley 1305-AA08A-HA2 Adjustable Frequency AC Drive is part of the Bulletin 1305 Series. The drive has a 200-230V, 50-60 Hz voltage rating with 3-phase and 200-240V with single-phase input. The 1305-AA08A-HA2 has an IP30, NEMA Type 1 enclosure which means it is ideal for indoor use and protection against contact with the enclosure equipment is required.


The 1305-AA08A-HA2 AC Drive comes with a HIM or Human Interface Module that has digital “up” and “down” keys. This drive-mounted HIM is visible from the front of the drive and it is connected to an adapter. Aside from being mounted directly, the HIM can also be used as a handheld programmer. The HIM has 7 different modes – Display, Process, Program, EEPROM, Search, Control Status, and Password. The EEPROM mode resets all the parameters to the factory default settings. The Control status mode allows the enabling or disabling of the Logic Mask parameters for HIM removal, and the 1305-AA08A-HA2 provides access to the fault queue.


The 1305-AA08A-HA2 must be mounted on a metallic surface and have a minimum clearance of 2 inches above and below, and a minimum clearance of 3 inches on the side. The drive can be directly connected to an AC power line with the correct voltage, single or 3-phase. However, the 1305-AA08A-HA2 does not have branch circuitry protection. To safeguard against drive input power malfunctions, an AC input line fuse is required.

Repair Services for 1305-AA08A-HA2

Type Lead Time Price Action
Repair Service 2-4 weeks $283.52cartAdd to Cart

Our highly skilled technicians can repair your 1305-AA08A-HA2. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1305-AA08A-HA2

Please refer to the manual for more information about the 1305-AA08A-HA2 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
1305-AA08A-HA2 Ser A
1305-AA08A-HA2/A, Series A, Rev A Request Quote
1305-AA08A-HA2 Ser B
1305-AA08A-HA2/B, Series B, Rev B Request Quote
1305-AA08A-HA2 Ser C
1305-AA08A-HA2/C, Series C, Rev C Request Quote
