Allen Bradley 1336 PLUS II Drives 1336F-CWF100-AA-EN-HCS2-LA2

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-CWF100-AA-EN-HCS2-LA2

|
Need a Specific Revision?

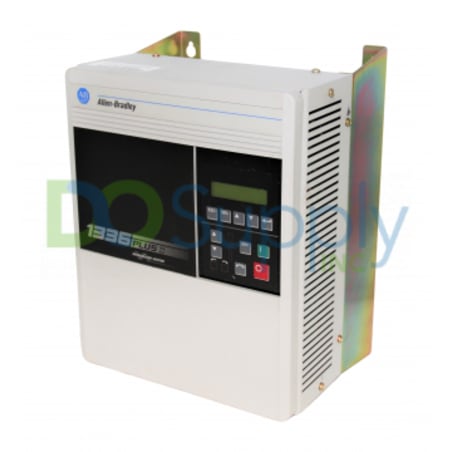

The 1336F-CWF100-AA-EN-HCS2-LA2 is an adjustable frequency AC drive from Allen Bradley. This model operates on an input voltage range of 500 to 600 VAC and has a power rating of 7.5 kW. It is designed with a NEMA 1 enclosure and features an English language group, making it accessible in many environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-CWF100-AA-EN-HCS2-LA2

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-CWF100-AA-EN-HCS2-LA2
Weight35.00 lbs (15.88 kg)
IP ProtectionIP20
Enclosure TypeNEMA 1
Language GroupEnglish
Power Rating7.5 kW
Voltage Rating (AC)500-600 VAC
Voltage Rating (DC)775 VDC
HIM ModuleProgrammer/Controller with Digital Pot and Upload/Download Capability
Analog Interface Options2 Isolated Configurable Inputs
Installation Altitude1000 m
Operating Temperature Range0 to 40 °C
Storage Temperature Range-40 to 70 °C
Relative Humidity5 to 95% (non-condensing)
Shock Resistance15G peak at 11 ms duration (±1 ms)
Vibration Resistance0.006 inches (0.152 mm) of displacement at 1G peak
View as PDF
Request a Repair

The 1336F-CWF100-AA-EN-HCS2-LA2 is part of the Allen Bradley 1336 PLUS II Drives series. This adjustable frequency drive is structured to provide reliable performance with an input voltage range spanning from 500 volts to 600 volts AC. It holds a power rating of 7.5 kW, rendering it suitable for various industrial applications. The unit also supports a maximum DC voltage of 775 VDC, making it versatile for different motor types.

Equipped with an NEMA 1 enclosure, the drive features an IP20 protection rating. It is suitable for indoor use, ensuring it is shielded from dust and physical contact but not from moisture. The included human-machine interface (HIM) allows for easy programming and adjustment through its digital potentiometer, complemented by upload and download capabilities for simple data management.

Additional flexibility is provided through the two isolated configurable input options, which enhance the drive's adaptability in various applications. This model is designed to operate effectively at altitudes up to 1000 meters, suitable for general industrial environments. The operating temperature range varies from 0 to 40 °C, while it can be stored at temperatures ranging from -40 to 70 °C. Furthermore, it can function in relative humidity levels between 5% and 95% without condensation.

Ruggedness is a key feature, with the drive exhibiting shock resistance rated at 15G peak for brief durations of 11 milliseconds. It is also capable of handling vibration levels up to 0.006 inches (0.152 mm) at 1G peak, confirming its durability in demanding conditions.

Revision Part #Also known as
1336F-CWF100-AA-EN-HCS2-LA2 Ser A1336F-CWF100-AA-EN-HCS2-LA2/A, Series A, Rev A
Don't see your particular revision? Contact us now.
