1336-QOUT-SP25A

Rated 4.6 with 8 reviews
top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

1336-QOUT-SP25A

Revisions: Ser A
Description: The 1336-QOUT-SP25A is an Allen-Bradley transistor output assembly which belongs to the Allen-Bradley 1336 series of drives. Its operating voltage is 460V AC. This device’s power output is 250-450 HP.  This drive is designed to be used with F-size frames. read more...
In Stock Ships Today
Request a quote for 1336-QOUT-SP25A

Description: The 1336-QOUT-SP25A is an Allen-Bradley transistor output assembly which belongs to the Allen-Bradley 1336 series of drives. Its operating voltage is 460V AC. This device’s power output is 250-450 HP.  This drive is designed to be used with F-size frames. read more...

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 1336-QOUT-SP25A.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 8 reviews

    Technical Specifications for 1336-QOUT-SP25A

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336-QOUT-SP25A
DescriptionTransistor Output Assembly
Voltage460V AC
ListingThese specifications were compiled by DO Supply Inc (D O Supply).
Horsepower250-450 HP
Frame ModelsF
Units of Kits per Drive3
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-QOUT-SP25A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-QOUT-SP25A units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336-QOUT-SP25A
DescriptionTransistor Output Assembly
Voltage460V AC
Horsepower250-450 HP
Frame ModelsF
Units of Kits per Drive3
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-QOUT-SP25A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-QOUT-SP25A units instead of migration.

s

About 1336-QOUT-SP25A

The 1336-QOUT-SP25A is an Allen-Bradley transistor output assembly which belongs to the Allen-Bradley 1336 series of drives. Its operating voltage is 460V AC. This device’s power output is 250-450 HP.  This drive is designed to be used with F-size frames. This module uses three units of kits for this device. It is easy to install and assemble. This transistor can be used to replace a broken transistor or to upgrade an older transistor. The 1336-QOUT-SP25A has in it a means of voltage control that protects it from being damaged by excessive currents. The voltage dividers that it contains also serve to minimize the DC bus voltage to values that can be used when controlling the signal circuit isolation.





The 1336-QOUT-SP25A also has an FWD which supports and allows the magnetic energy contained in parasitic inductance to be dissipated safely when the transistor is turned off. It also has LEDs which are contained at the front of the enclosure to show the operator the types of operations that are ongoing. The “brake on” light flicks on this gadget when the chopper module is in operation. It also has protective fuses that work together with the crowbar to sense circuitry and determine whether normal conditions exist within the transistor.





The operating temperature of the 1336-QOUT-SP25A should not be over 50°C. The atmosphere where it is kept should also be a non-corrosive one with a non-condensing humidity of 5-95%. This transistor is insulated to prevent damage to the device. When working with the device, operators are advised be careful after connecting it to a power supply so that they are not electrocuted. It has a thermostat that works at protecting it from being overheated. It also aids in controlling the temperature levels. It does this by tripping and disabling the brake module till it cools. This gadget is supposed to be installed on a flat surface.



Technical Description of 1336-QOUT-SP25A

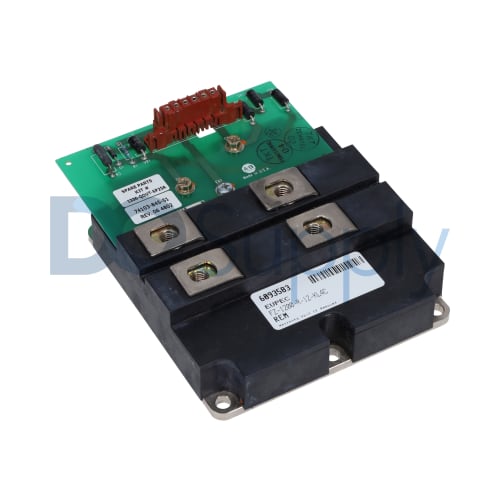

Allen Bradley Transistor Assembly with 460V AC output voltage and 250-450 HP output power range.
