1336 Transistor Assembly

Series overview
More information
Select by specs
In StockIn Stock
Ships TodayShips Today
One Year DO Supply WarrantyOne Year DO Supply Warranty
'Fast RepairsFast repairs at low costs

The 1336 Transistor Assembly series by Allen-Bradley is a family of transistor and IGBT output replacement accessories for the 1336 PLUS, PLUS II, FORCE, IMPACT, and REGEN series of drives. Accessories in this series include the main transistor and IGBT assembly kit with a built-in gate drive interface (the 1336-QOUT-xxx), the precharge transistor module (the 1336-QPRE-xxx), and the thyristor (SCR) assembly (the 1336-SCR-xxx). The 1336 Transistor Assemblies are available with a single transistor and thyristor per kit, 2 transistors and thyristors per kit, 4 transistors and thyristors per kit, 2 transistors and 2 gate drive boards per kit, or 4 transistors and 2 gate drive boards per kit. They are compatible with 230 Volts AC, 460 Volts AC, and 575 Volts AC drives with ratings from 7.5 to 800 Horsepower. There are slight model variations across the entire series, but all 1336 transistor assemblies have a common installation mode.


The 1336 Transistor Assemblies are installed on the drive’s heatsink. When installing the 1336 Transistor Assembly, careful considerations must be taken to meet the mounting surface or mounting torque specifications of that particular transistor unit or kit. To install the 1336 Transistor Assembly, the power must first be disconnected from the drive and the bus voltage on the +DC and -DC end of the terminal block TB1 must be zero before any installation attempt is made. The installation surface must be prepared first by coating it with the supplied thermal compound (Dow Corning DC 340) and then mounting the required 1336 Transistor Assembly on the heatsink. Then the transistor mounting holes are aligned with the heatsink holes, and the new screws supplied with the kit are inserted into the heatsink holes to hold the transistor module in place.

Allen-Bradley 1336 Transistor Assembly



Allen-Bradley 1336 Transistor Assembly



1336 Transistor Assembly Description Stock Level
1336-L-SP13A

The Allen-Bradley 1336-L-SP13A inductor belongs to the 1336 series of renewal parts. It comes with a D size fr...

Available Now
1336-L-SP14A

The Allen-Bradley 1336-L-SP14A inductor belongs to the 1336 series of renewal parts. It comes with a D size fr...

Available Now
1336-L-SP17A

The Allen-Bradley 1336-L-SP17A inductor belongs to the 1336 series of renewal parts. It comes with an E type of fra...

Available Now
1336-L-SP7A

The Allen-Bradley 1336-L-SP7A inductor belongs to the 1336 series of renewal parts. It comes with a C type of frame....

In Stock
1336-QOUT-SP10A

The 1336-QOUT-SP10A transistor is a spare part kit that contains one transistor output assembly for Allen-Bradle...

Available Now
1336-QOUT-SP11AAllen Bradley Transistor Assembly with 575V AC output voltage and 50-60 HP output power range.
Available Now
1336-QOUT-SP12AAllen Bradley Transistor Assembly with 460V AC output voltage and 60-75 HP output power range.
Available Now
1336-QOUT-SP12BAllen Bradley Transistor Assembly with 460V AC output voltage and 60-75 HP output power range.
Available Now
1336-QOUT-SP13AAllen Bradley Transistor Assembly with 460V AC output voltage and 100 HP output power range.
In Stock
1336-QOUT-SP14A

The Allen-Bradley 1336-QOUT-SP14A assembly is an Insulated-Gate Bipolar Transistor (IGBT) assembly that is spec...

Available Now
1336-QOUT-SP17AAllen Bradley Transistor Assembly with 575V AC output voltage and 125 HP output power range.
Available Now
1336-QOUT-SP18AAllen Bradley Transistor Assembly with 460V AC output voltage and 150-250 HP output power range.
Available Now
1336-QOUT-SP19AAllen Bradley Transistor Assembly with 575V AC output voltage and 150-300 HP output power range.
Available Now
1336-QOUT-SP1AAllen Bradley Transistor Assembly with 460V AC output voltage and 7.5-10 HP output power range.
Available Now
1336-QOUT-SP20A

The 1336-QOUT-SP20A transistor output assembly kit is manufactured by Allen-Bradley as a spare part for the inve...

Available Now
1336-QOUT-SP21AAllen Bradley Transistor Assembly with 460V AC output voltage and 400-800 HP output power range.
Available Now
1336-QOUT-SP23A

With a nominal operating voltage of 575 Volts AC and a Horsepower output rating in the 400 to 800 Horsepow...

Available Now
1336-QOUT-SP25AAllen Bradley Transistor Assembly with 460V AC output voltage and 250-450 HP output power range.
In Stock
1336-QOUT-SP3AAllen Bradley Transistor Assembly with 460V AC output voltage and 15 HP output power range.
Available Now
1336-QOUT-SP5AAllen Bradley Transistor Assembly with 460V AC output voltage and 20 HP output power range.
Available Now
1336-QOUT-SP6AAllen Bradley Transistor Assembly with 460V AC output voltage and 25-30 HP, 48A output power range.
Available Now

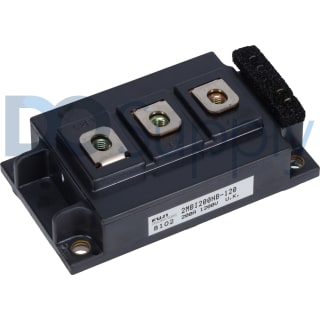

1336-QOUT-SP8AAllen Bradley Transistor Assembly with 460V AC output voltage and X40-X60 HP output power range.
In Stock
1336-QOUT-SP9A

The Allen-Bradley 1336-QOUT-SP9A transistor assembly is a TSTR output transistor assembly kit that is design...

Available Now
1336-QPRE-SP1AAllen Bradley Precharge Modules with 460V AC output voltage and 7.5-15 HP output power range.
Available Now

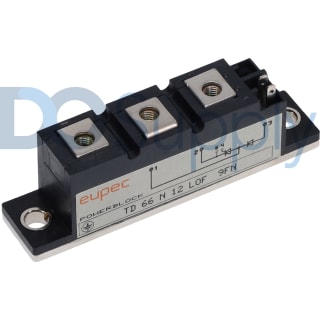

1336-QPRE-SP1CAllen Bradley Precharge Modules with 460V AC output voltage and 7.5-30 HP output power range.
In Stock
1336 Transistor Assembly Description Stock Level
