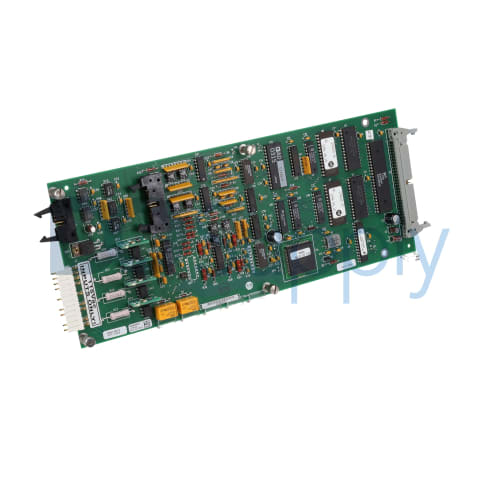

Allen Bradley 1395 Spare Parts SP-170024

Product image is representative; revision or series may vary. Contact us to request a specific version.

SP-170024

|
Need a Specific Revision?

The SP-170024 discrete adapter board from Allen Bradley is a multifunctional component designed for Ethernet networking. This board supports a total of 24 ports with a data rate of 10/100 Mbps per port and operates at 115 V AC, emphasizing its suitability for various industrial applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for SP-170024

ManufacturerAllen Bradley
Product TypeDiscrete Adapter Board
Product Line1395 Spare Parts
Part NumberSP-170024
Weight0.75 lbs (0.34 kg)
Voltage115 V AC
Ports24 ports total, 2 x 10/100 Mbps
SecurityPassword-protected
Connector TypeRJ-45
LED IndicatorsPower, link/activity per port
Data Rate10/100 Mbps per port
Network TypeEthernet/LAN
InstallationPlug-in/PCB mount
Power Consumption15 W
OperationFan-less, silent
ManagementWeb-managed
View as PDF
Request a Repair

The SP-170024 is a discrete adapter board component from Allen Bradley's 1395 Spare Parts line, tailored for Ethernet applications. This adapter is capable of handling 24 total ports, including 2 ports that support data transfer rates of up to 10/100 Mbps. It operates using a voltage of 115 V AC, making it compatible with common power systems.

Security features include password protection, ensuring that unauthorized access to the network is prevented. The board utilizes RJ-45 connector types for reliable networking connections. Each port is equipped with LED indicators that relay information regarding power status and transmission activity, aiding in real-time monitoring.

This adapter board is designed to facilitate easy installation through plug-in or PCB mounting options, which accommodates integration into existing systems without extensive modifications. It operates with a power consumption of 15 W, and its fan-less design contributes to quiet operation in various environments. Additionally, the device is web-managed, offering streamlined management and configuration capabilities, which enhances usability and monitoring tasks in network setups.

Revision Part #Also known as
Ser ASP-170024-A, Series A, Rev A
Don't see your particular revision? Contact us now.
