160-BA06NPS1P1

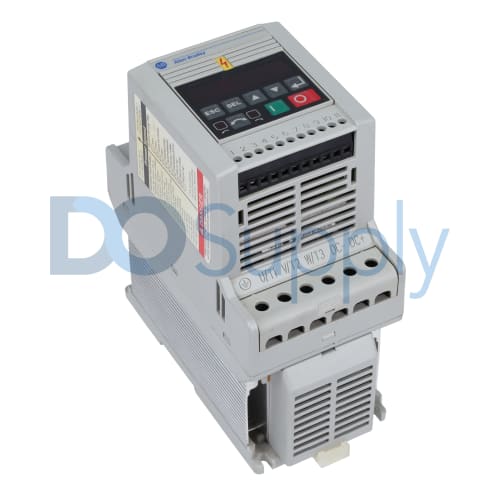

The 160-BA06NPS1P1 is a Variable Speed Drive from the series of 160 SSC drives manufactured by Allen-Bradley. This drive is connected to a 380 to 460 Volt AC three-phase voltage on the input side. It is medium size Bulletin 160 drive with a 2.2kW (3HP) power rating and a 6.0A maximum output current. Its enclosure type is IP20 (open) and it features a program keypad module and is a model with a preset speed. The program keypad module makes use of external logic control obsolete for many applications. There are two modes of operation for this module, which are display mode and programming mode. The program keypad module provides the ability to monitor or change the drive's parameters. It is used for local control by making start, stop, and reverse controls actuation. The user can read out fault codes, input status, and drive status information for diagnostics and troubleshooting purposes.

Furthermore, if the preset speed control is not an option for a certain application (as standard option for this model), with the program keypad module, the user can apply PI Control (simple closed-loop process control by using an analog feedback), or analog control with one preset (switching from analog reference speed to preset reference speed via a digital input selection). The 160-BA06NPS1P1 drive dimensions and weight are approximately 6.00 x 3.15 x 6.51 inches (152 x 80 x 165 millimeters) and 2.43 pounds (1.10 kilograms). With an overall width of 80 millimeters, this drive is a leader among devices with these power ratings. Its operating temperature range is 0 to 50 degrees Celsius. And its programmable motor I2t overload protection consists of 150% for 60 Seconds or 200% for 30 Seconds.
