160S-AA04NPS1

Revisions: Ser A Ser B Ser C

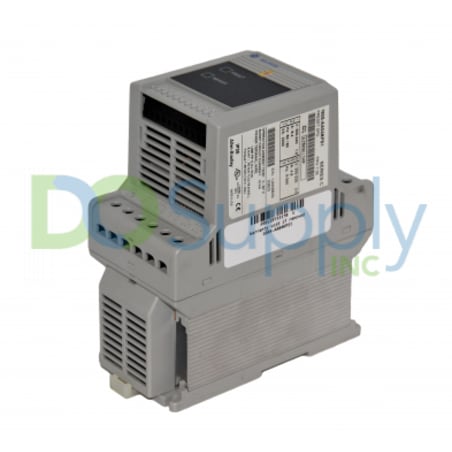

Description: Allen-Bradley 160S-AA04NPS1 Variable Speed Drive with a 1 Phase Input and a 200-240V Voltage Rating. It also has a Open(IP20) Enclosure Type and a Preset Speed Model Type.
Available Now
Request a quote for 160S-AA04NPS1

Description:

Allen-Bradley 160S-AA04NPS1 Variable Speed Drive with a 1 Phase Input and a 200-240V Voltage Rating. It also has a Open(IP20) Enclosure Type and a Preset Speed Model Type.



Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 160S-AA04NPS1.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.6 with 9 reviews

    Technical Specifications for 160S-AA04NPS1

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.160S-AA04NPS1
Product TypeVariable Speed Drive
Voltage Rating200-240V
Phase Input1
Current RatingA04
Enclosure TypeOpen(IP20)
Model TypePreset Speed
SeriesC
Max. Output Amps4.5
Operational Input Voltage Range180-265V AC
Input Current9.4
Cooling MethodFan
Dimensions (H,W,D)6/3.15/6.51 in.
Weight2.24 lbs.
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 160S-AA04NPS1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 160S-AA04NPS1 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.160S-AA04NPS1
Product TypeVariable Speed Drive
Voltage Rating200-240V
Phase Input1
Current RatingA04
Enclosure TypeOpen(IP20)
Model TypePreset Speed
SeriesC
Max. Output Amps4.5
Operational Input Voltage Range180-265V AC
Input Current9.4
Cooling MethodFan
Dimensions (H,W,D)6/3.15/6.51 in.
Weight2.24 lbs.
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 160S-AA04NPS1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 160S-AA04NPS1 units instead of migration.

s

About 160S-AA04NPS1

The Allen-Bradley 160S-AA04NPS1 controller is a variable speed controller from the 160 SSC family of controllers. The 160S-AA04NPS1 controller operates at 200 to 240 Volts AC single-phase voltage. The rated current for the controller is 4 Amps. The controller supports a preset speed. The maximum output current for the 160S-AA04NPS1 controller is 4.5 Amps. The total power dissipation is 40 Watts. The output voltage is adjustable from 0 Volts to the input voltage. The frequency at the output is programmable from 0 to 240 Hertz. The typical controller efficiency rating is 97.5%. The standard 2 kV transient protection level is provided on the controller. The operational range for input is from 180 to 265 Volts AC. The input power for the controller is 2.2 kVA. The 160S-AA04NPS1 controller is a fan-cooled device. The available options for the 160S-AA04NPS1 controller include a dynamic brake module, MOV module, line reactors, a line filter, and a capacitor module.

The controller is available in an open IP 20 rated enclosure. The approximate dimensions for the 160S-AA04NPS1 controller are 6 x 2.8 x 5.4 inches. The weight of the controller is 0.91 kilograms. The recommended working temperature range for the 160S-AA04NPS1 controller is from 0 to 50 degrees Celsius and the temperature range for storage is from -40 to 85 degrees Celsius. The storage of the controller in corrosive environments should be avoided. The cooling fan on the units should be protected from dust and metallic particles. The controller should also be protected from direct sunlight and moisture. For proper operation, the controller should be installed on a flat, vertical, and level surface. The minimum recommended clearance around the controller on all sides is 0.5 inches.

Repair Services for 160S-AA04NPS1

Type Lead Time Price Action
Repair Service 2-4 weeks $401.82cartAdd to Cart

Our highly skilled technicians can repair your 160S-AA04NPS1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 160S-AA04NPS1

Please refer to the manual for more information about the 160S-AA04NPS1 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
160S-AA04NPS1 Ser A
160S-AA04NPS1/A, Series A, Rev A Request Quote
160S-AA04NPS1 Ser B
160S-AA04NPS1/B, Series B, Rev B Request Quote
160S-AA04NPS1 Ser C
160S-AA04NPS1/C, Series C, Rev C Request Quote
