The Allen-Bradley Bulletin 1394 series is an advanced multi-axis motion control system for servo drive applications. It is designed as a compact system that integrates power and control to accurately coordinate multiple servo motors. The Bulletin 1394 system offers enhanced diagnostics and high-speed communications for optimum performance in any automation application. The Bulletin 1394 series maximizes productivity and system reliability in complicated motion control applications.
Browse available units in our catalog of Bulletin 1394.

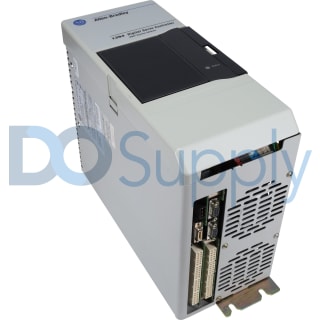

Incorporating an input frequency of either 50 or 60 Hz, the multi-axis controller delivers a continuous input current of 6.5 A. Its bus output voltage operates within a range of 530 to 680 V DC. The c

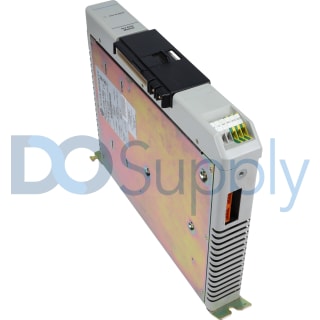

This module functions as an axis inverter and outputs three-phase AC voltage. It can handle a continuous current of 3 A and a peak current of 6 A. Powered via a DC bus, it utilizes a heatsink-less coo
This module features a 220 µF DC bus capacitance and a DC bus inductance of 1000 µH. With an integrated shunt rated for 200 watts continuously and 40 kW peak for up to 2 seconds, it supports robust pe
This module features a static gain of 4.9 rms A/mV and incorporates a capacitance of 220 µF for stable operation. Operating at a PWM frequency of 5 kHz ± 10 %, it achieves impressive efficiency rating
This multi-axis servo system module operates at a continuous output power between 4 to 5 kW. With a nominal DC bus output voltage of 530/680 V DC, it also allows for continuous DC output of 7.36 A, wi
This servo controller operates within specified frequency constraints, with a minimum of 50 Hz and a maximum of 60 Hz. The output voltage from the nominal bus can reach levels of 530/680 VDC. Communic
