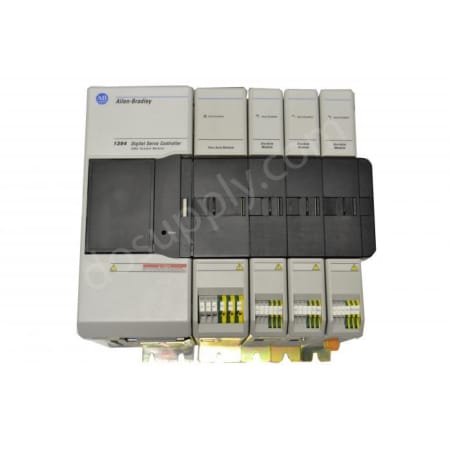

Allen Bradley Bulletin 1394 1394-DCLM

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394-DCLM

|
Need a Specific Revision?

The 1394-DCLM is a specialized DC link module from Allen Bradley’s Bulletin 1394 series, meant for 1-phase power operations. This module operates efficiently at an input voltage range between 530 and 680 VDC and boasts a high efficiency rating of 0.98, providing reliable regenerative energy storage capabilities.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394-DCLM

ManufacturerAllen Bradley
Product TypeDC Link Module
Product LineBulletin 1394
Part Number1394-DCLM
Weight12.00 lbs (5.44 kg)
Bus Connection TypeDC Link cable
Power Phase1-Phase
DC Bus FunctionRegenerative energy storage
Efficiency0.98
Standalone OperationSupported
Rated Output Current32 A
Input Voltage Range530–680 VDC
Static Gain4.9 rms A/mV
Energy Storage MethodCapacitive
Maximum Current35 A
Compatibility1394 Drive System
View as PDF
Request a Repair

The Allen Bradley 1394-DCLM functions as a DC link module within the Bulletin 1394 series. Operating on a single-phase power supply, this device connects to a DC link cable, allowing it to gather and store regenerative energy effectively.

Designed to accommodate an input voltage range from 530 to 680 VDC, the 1394-DCLM module achieves an impressive efficiency of 0.98. This high efficiency ensures that a significant amount of the stored energy is usable and effectively managed. The module is also capable of standalone operation, providing added flexibility in various configurations.

The rated output current for the 1394-DCLM is 32 Amps, but it can sustain maximum current levels of up to 35 Amps. This ensures that the module can handle a robust load efficiently. Additionally, with a static gain of 4.9 rms A/mV, this device is adept at optimizing energy flow. The energy is stored using a capacitive method, enhancing the overall performance of the drive system.

In summary, the 1394-DCLM DC link module is specifically compatible with the 1394 drive system, making it an essential component for systems that require effective energy storage and management in electrical applications.

Revision Part #Also known as
1394-DCLM Ser A1394-DCLM/A, Series A, Rev A
1394-DCLMX1394-DCLM/X, Series X, Rev X
Don't see your particular revision? Contact us now.
