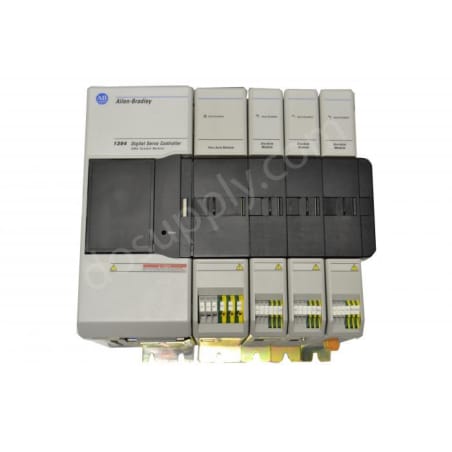

Allen Bradley Bulletin 1394 1394-SJT05-E

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394-SJT05-E

|
Need a Specific Revision?

The 1394-SJT05-E servo system module from Allen Bradley operates as an analog servo drive designed to facilitate precise control in various applications. It supports a CNC interface, making it suitable for integration into automated systems without an operator interface.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394-SJT05-E

ManufacturerAllen Bradley
Product TypeServo system module
Product LineBulletin 1394
Part Number1394-SJT05-E
UPC662453213231
Weight23.00 lbs (10.43 kg)
Control TypeAnalog servo drive
InterfaceCNC interface compatible
Operator InterfaceNo HIM
Analog Command Input±10 V DC signal
Rated AC Input Voltage324–528 V AC, 3-phase, 50/60 Hz
AC Input Current6.5 A rms
Peak Inrush Current975 A peak
Line Loss Ride Through20 ms hold-up time
DC Bus Output530–680 V DC
Continuous Power Output4–5 kW rated
Peak Power Output28 kW peak
Capacitance220 µF bus capacitance
Inductance1000 µH internal inductance
View as PDF
Request a Repair

The Allen Bradley 1394-SJT05-E is a sophisticated servo system module characterized by its analog control approach. With compatibility for a CNC interface, this module can be integrated seamlessly into machinery for enhanced automation. It lacks a human-machine interface, focusing instead on direct analog command input, which utilizes a ±10 V DC signal for operational feedback.

Designed for robust performance, the module operates using a rated AC input voltage of 324 to 528 V across three-phase power systems, functioning effectively at 50 or 60 Hz. The standard operation draws an AC input current of 6.5 A (RMS), and it can momentarily handle peak inrush currents surging to 975 A. The design incorporates a line loss ride-through feature that allows it to sustain operations for 20 ms during transient power interruptions, ensuring reliability.

On the DC side, it generates an output voltage between 530 and 680 V DC, which is practical for demanding applications. Its continuous power output capabilities range from 4 to 5 kW, with a peak potential output reaching up to 28 kW. This module features a bus capacitance of 220 µF, complemented by an internal inductance of 1000 µH, enabling stability and efficiency in performance. The 1394-SJT05-E is well-constructed for applications requiring precision and power in servo control.

Revision Part #Also known as
1394-SJT05-E Ser A1394-SJT05-E/A, Series A, Rev A
1394-SJT05-EX1394-SJT05-E/X, Series X, Rev X
Don't see your particular revision? Contact us now.
