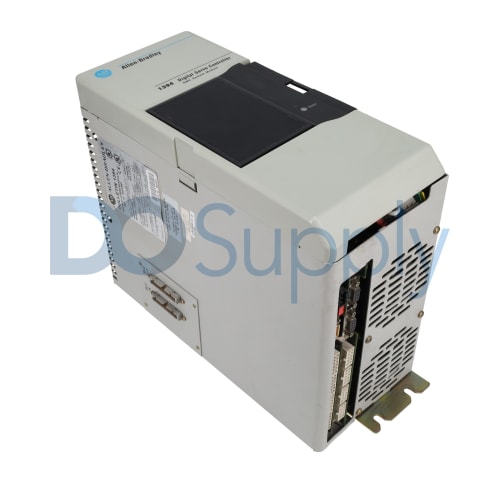

Allen Bradley Bulletin 1394 1394-SJT10-T-RL

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394-SJT10-T-RL

|
Need a Specific Revision?

The Allen Bradley 1394-SJT10-T-RL is a Turbo System Servo Module designed for versatile applications. With an input voltage range of 360-480 VAC, this module supports both single-phase and three-phase systems while ensuring efficient operational performance.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394-SJT10-T-RL

ManufacturerAllen Bradley
Product TypeTurbo System Servo Module
Product LineBulletin 1394
Part Number1394-SJT10-T-RL
Weight23.00 lbs (10.43 kg)
UPC781180130656
Input Voltage360–480 VAC
Phase Type1/3 phases
Input Frequency Maximum60 Hz
Input Frequency Minimum50 Hz
Input Current Rating10.0 A
Output Voltage530–680 VDC
Power Rating8–10 kW
Output Current15 A
Control Power Input24V RMS, 1-Phase (DC/50/60 Hz)
Installation Altitude1000 MSL
View as PDF
Request a Repair

The Turbo System Servo Module, model 1394-SJT10-T-RL, from Allen Bradley, is built for dynamic control in various automation environments. It accommodates input voltage levels from 360 to 480 VAC, suitable for both single-phase and three-phase connections. Designed for robust application, the module operates at a maximum input frequency of 60 Hz and a minimum of 50 Hz.

This unit is rated for an input current of 10 A while delivering an output voltage that spans from 530 to 680 VDC, which allows compatibility with a variety of machinery and systems requiring elevated DC voltages. With a power rating capacity of 8 to 10 kW, it efficiently meets the demands of heavy loads. The output current rating stands at 15 A.

Control operations utilize a 24V RMS input signal and support 1-phase configurations at frequencies of either 50 or 60 Hz, facilitating straightforward integration into existing setups. Furthermore, it can be effectively installed at altitudes of up to 1000 meters above sea level, expanding its usability in diverse installations.

Revision Part #Also known as
1394-SJT10-T-RL Ser A1394-SJT10-T-RL/A, Series A, Rev A
1394-SJT10-T-RL Ser B1394-SJT10-T-RL/B, Series B, Rev B
1394-SJT10-T-RL Ser C1394-SJT10-T-RL/C, Series C, Rev C
1394-SJT10-T-RLX1394-SJT10-T-RL/X, Series X, Rev X
Don't see your particular revision? Contact us now.
