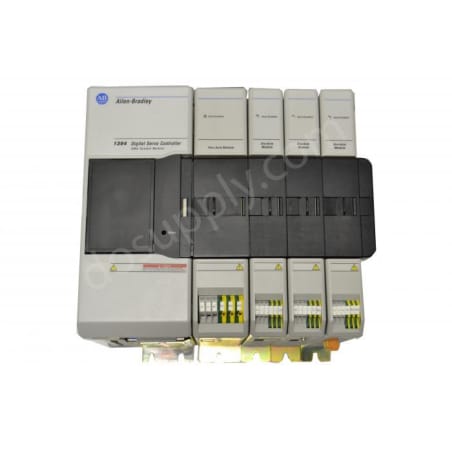

Allen Bradley Bulletin 1394 1394C-AM50-IH-C

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394C-AM50-IH-C

|
Need a Specific Revision?

The Allen-Bradley Servo Controller 1394C-AM50-IH-C is a Servo (Axis) Amplifier with Filtering (EMI) and Enhanced Terminations, a 15.6 Kilowatt Output Rating, 530-680 DC Input Voltage, and a 33.2 A Amperage.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394C-AM50-IH-C

ManufacturerAllen Bradley
CategoryDrives
Product LineBulletin 1394
Part Number1394C-AM50-IH-C
Weight32.00 lbs (14.51 kg)
Module TypeServo (Axis) Amplifier
Output Rating15.6 Kilowatt
DC Input Voltage530-680
Amperage33.2 A
Series EnhancementsFiltering (EMI) and Enhanced Terminations
Heat Sink OptionsInside Cabinet Heatsink
Efficiency98%
Capacitance465 Microfarads
Speed Regulation0-0.05% of base speed w/ 100% torque disturbance
Static Gain22.8 rms A/mV
Continuous Current (rms)23.3 Amperes
Peak Current (rms - 1 sec)33.2 Amperes
Continuous Power 380/460 Volts11.34/15.6 Kilowatts
Peak Power 380/460 Volts16.1/22.2 Kilowatts
View as PDF
Request a Repair

The 1394 9/Series CNC Interface system (1394C-AM50-IH-C) provides a digital servo system which can be used with both the 9/260 and the 9/290 CNC. It is convenient and utilizes an economic digital interface technique. The Servo control for the 1394C-AM50-IH-C  system is controlled by the 9/Series CNC.

The 1394C-AM50-IH-C comes with a fiber optic I/O ring and entirely interfaced system, programmed using an ODS (Offline Development System) and the CNC operator panel.

The easily available options with the 9/Series CNC interface system are Allen-Bradley Remote I/O, MMS/Ethernet (9/260 and 9/290 only), and Data Highway Plus (9/260 and 9/290 only) communications.

The two 1394 system power buses can be linked conveniently by connecting the two DCLMs together. It is, however, crucial to note that the procedure is application-specific and requires proper implementation. Before using the 1394-DCLM for energy storage, the power plug must be installed.

When the 5 or 10 kiloWatt 1394C-AM50-IH-C system module needs a medium of dissipating regenerative energy that goes beyond the capacity prescribed for the internal shunt resistor,  install a 1394 External Shunt Resistor Kit before doing anything else.

Revision Part #Also known as
1394C-AM50-IH-C Ser A1394C-AM50-IH-C/A, Series A, Rev A
1394C-AM50-IH-CX1394C-AM50-IH-C/X, Series X, Rev X
Don't see your particular revision? Contact us now.
