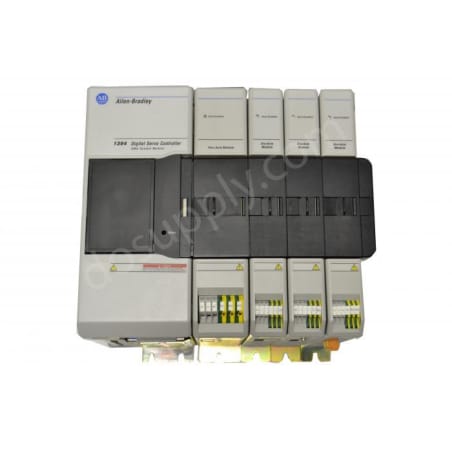

Allen Bradley Bulletin 1394 1394C-SJT05-C

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394C-SJT05-C

|
Need a Specific Revision?

The Allen-Bradley Servo Controller 1394C-SJT05-C is a System with Terminations, Filtering (EMI), and Smart Power Series Enhancements, GMC- IMC S Class, a 5 Kilowatt Power Rating, and a 0.98 Efficiency.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394C-SJT05-C

ManufacturerAllen Bradley
CategoryDrives
Product LineBulletin 1394
Part Number1394C-SJT05-C
Weight25.06 lbs (11.37 kg)
Module TypeSystem
Power Rating5 Kilowatt
Input Phase3 Phase
Series EnhancementsTerminations, Filtering (EMI), and Smart Power
Factory-Installed OptionsGMC- IMC S Class
Input Voltage50-60 Hertz
Efficiency98%
View as PDF
Request a Repair

The 1394C-SJT05-C GMC offers all the functionalities of the IMC S class power conversion and compact motion controller within the 1394 system module. The 1394C-SJT05-C (Standard GMC) system module also supports four axis modules and provides four auxiliary encoder input channels.

This standard module provides 32 k of program memory with a 16-bit processor. It also involves a direct and high-speed link to the SLC controller. This link is useful in racking which simplifies the programming required to transfer data between the system module and the SLC controller.

The system module has a remote I/O (RIO) and axis links available as communication options.

If the total capacitance of the bus exceeds the leader IAM pre-charging rating, the IAM seven segment will display an error code. Generally, in such conditions, the error code E90 will appear, which indicates a pre-charge time-out fault, if the input power is applied. To resolve this, the user must either replace the leader IAM with a larger module or decrease the total bus capacitance by removing the axis module. Its dimensions are 13.8 x 11.0 x 5.91 inches (350 x 280 x 150 millimeters) and it weighs 23.5 pounds (10.68 kilograms).

Revision Part #Also known as
1394C-SJT05-C Ser A1394C-SJT05-C/A, Series A, Rev A
1394C-SJT05-C Ser B1394C-SJT05-C/B, Series B, Rev B
1394C-SJT05-C Ser C1394C-SJT05-C/C, Series C, Rev C
1394C-SJT05-CX1394C-SJT05-C/X, Series X, Rev X
Don't see your particular revision? Contact us now.
