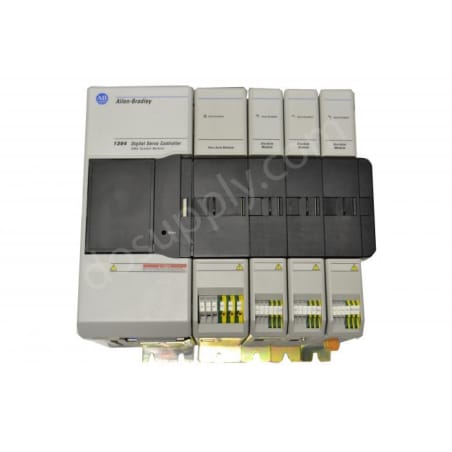

1394CAM75IHC

In the realm of advanced motion control, the Allen Bradley 1394CAM75IHC stands out as an efficient multi-axis servo drive module. It is engineered with an integrated axis power structure tailored for high-performance applications. This allows for optimal power distribution to connected motors. The device utilizes 3-phase AC as its input supply, supporting a nominal voltage range of 360-480 volts AC. It operates flawlessly within a frequency range of 50 to 60 Hz, ensuring synchronization with standard electrical systems.

The module's design facilitates compatibility with permanent magnet AC synchronous servo motors, enhancing its utility across various applications. It achieves a continuous system output of 22 kW, delivering substantial power for complex tasks. When assessing voltage capacity, the drive supports a bus voltage of 178 kW at 360 volts AC and increases to 238 kW at 460 volts AC, showcasing its robust power handling capabilities.

The DC bus operates within a range of 530 to 680 volts, securing a stable voltage level for consistent performance. The continuous current rating is established at 35 Amps RMS, with the ability to handle a peak current of 50 Amps RMS for a brief duration of one second, accommodating dynamic load conditions. Its PWM carrier frequency of 5 kHz ensures precise control over the motor's performance.

In terms of protective measures, the overload trip threshold is set at 143% of the nominal current, providing safety against potential overcurrent conditions. Overall, the 1394CAM75IHC module translates complex motion control commands into precise motor actions, making it a pivotal component in sophisticated automation systems.
