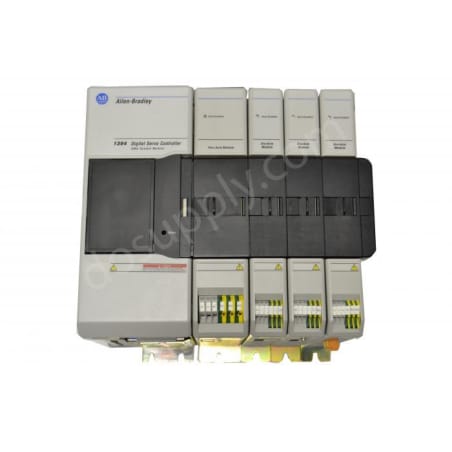

Allen Bradley Bulletin 1394 1394SJT05AA

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394SJT05AA

|
Need a Specific Revision?

The 1394SJT05AA model from Allen Bradley functions as a modular servo controller, designed for efficient motor control applications. It supports a DC bus voltage specification of 530/680V DC and has an input voltage range of 360–480V AC for three-phase operations.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394SJT05AA

ManufacturerAllen Bradley
Product TypeModular Servo Controller
Product LineBulletin 1394
Part Number1394SJT05AA
Weight35.00 lbs (15.88 kg)
DC Bus Voltage530/680V DC
Input Voltage360–480V AC (3-phase)
Power Rating5 kW
Input Frequency50/60 Hz
Output Power (Continuous)4/5 kW
Output Power (Peak)28 kW
Output Current (Continuous)7.36 Amperes AC
Output Current (Intermittent)15.0 Amperes AC
Control Interface±10V DC Analog Input (for speed/torque)
System EfficiencyApproximately 98-99%
View as PDF
Request a Repair

The Allen Bradley Bulletin 1394 series presents the 1394SJT05AA, a modular servo controller tailored for precise control in various motion applications. This unit defines its operational versatility with a DC bus voltage capacity reaching either 530 or 680 volts DC. Designed to function with three-phase input, it accepts voltage levels between 360 and 480 volts AC.

With a substantial power rating of 5 kW, this controller effectively manages motor output with continuous power capabilities of 4 to 5 kW, while also supporting peak output operations that can soar to 28 kW. The input frequency is flexible, accommodating either 50 Hz or 60 Hz, providing adaptability within different electrical environments.

The device continuously delivers an output current of 7.36 Amperes AC, while it can handle intermittent peak currents of up to 15.0 Amperes AC. For managing torque and speed, the control interface offers a ±10V DC analog input, ensuring seamless integration into existing systems.

In terms of efficiency, the 1394SJT05AA module excels, boasting a system efficiency of approximately 98-99%, making it an economical choice in high-performance settings. Overall, this modular servo controller exemplifies effectiveness and reliability within the Bulletin 1394 series.

Revision Part #Also known as
1394SJT05AA Ser A1394SJT05AA/A, Series A, Rev A
1394SJT05AAX1394SJT05AA/X, Series X, Rev X
Don't see your particular revision? Contact us now.
