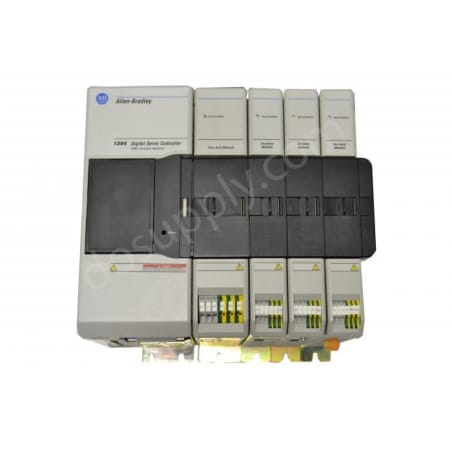

Allen Bradley Bulletin 1394 1394SJT05CA

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394SJT05CA

|
Need a Specific Revision?

The 1394SJT05CA from Allen Bradley is an analog servo controller, designed for 3-phase applications. This unit accepts an input voltage range between 360 to 480 volts AC and has a power capacity of 22 kW, accommodating various industrial motor control needs.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394SJT05CA

ManufacturerAllen Bradley
Product TypeAnalog Servo Controller
Product LineBulletin 1394
Part Number1394SJT05CA
Weight35.00 lbs (15.88 kg)
Min. Input Voltage360 V
Max. Input Voltage480 V
Voltage TypeAC
Phase Type3 Phase
Power Rating22 kW
Min. Input Frequency50 Hz
Max. Input Frequency60 Hz
Storage Humidity80% (Non-condensing)
Operating Humidity80% (Non-condensing)
Installation Altitude1000 MSL
Min. Operating Temperature0°C
Max. Operating Temperature40°C
View as PDF
Request a Repair

The Allen Bradley 1394SJT05CA is categorized as an analog servo controller, primarily intended for use within the Bulletin 1394 series. This unit is engineered to support a wide range of applications where precise motor control is essential. It operates within an input voltage spectrum of 360 to 480 volts AC, making it adaptable for diverse setups.

With a notable power rating of 22 kW, this controller can effectively manage significant electrical demands. The controller performs optimally under 3-phase conditions, which enhances its ability to deliver consistent performance. The frequency of operation ranges from a minimum of 50 Hz to a maximum of 60 Hz, aligning well with standard industry specifications.

Designed for use in various environmental settings, the 1394SJT05CA maintains functionality in humidity levels up to 80% while being non-condensing, both during operation and storage. Additionally, this controller can be installed at altitudes up to 1000 meters above sea level without compromising performance.

Thermal management is crucial, with the unit capable of functioning between 0°C to 40°C, ensuring reliability across many industrial applications. The specifications indicate a well-rounded, robust design, suitable for demanding scenarios.

Revision Part #Also known as
1394SJT05CA Ser A1394SJT05CA/A, Series A, Rev A
1394SJT05CAX1394SJT05CA/X, Series X, Rev X
Don't see your particular revision? Contact us now.
